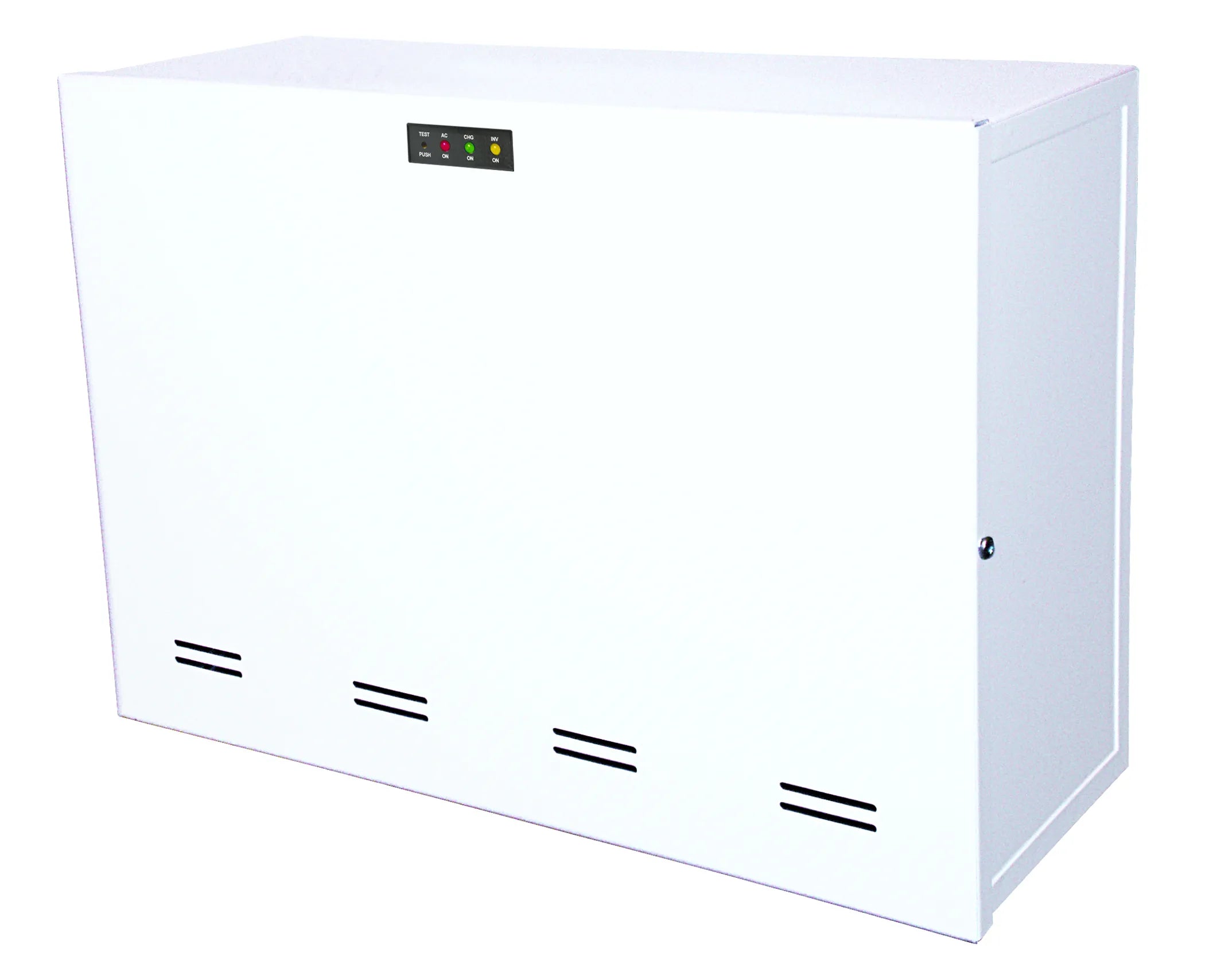

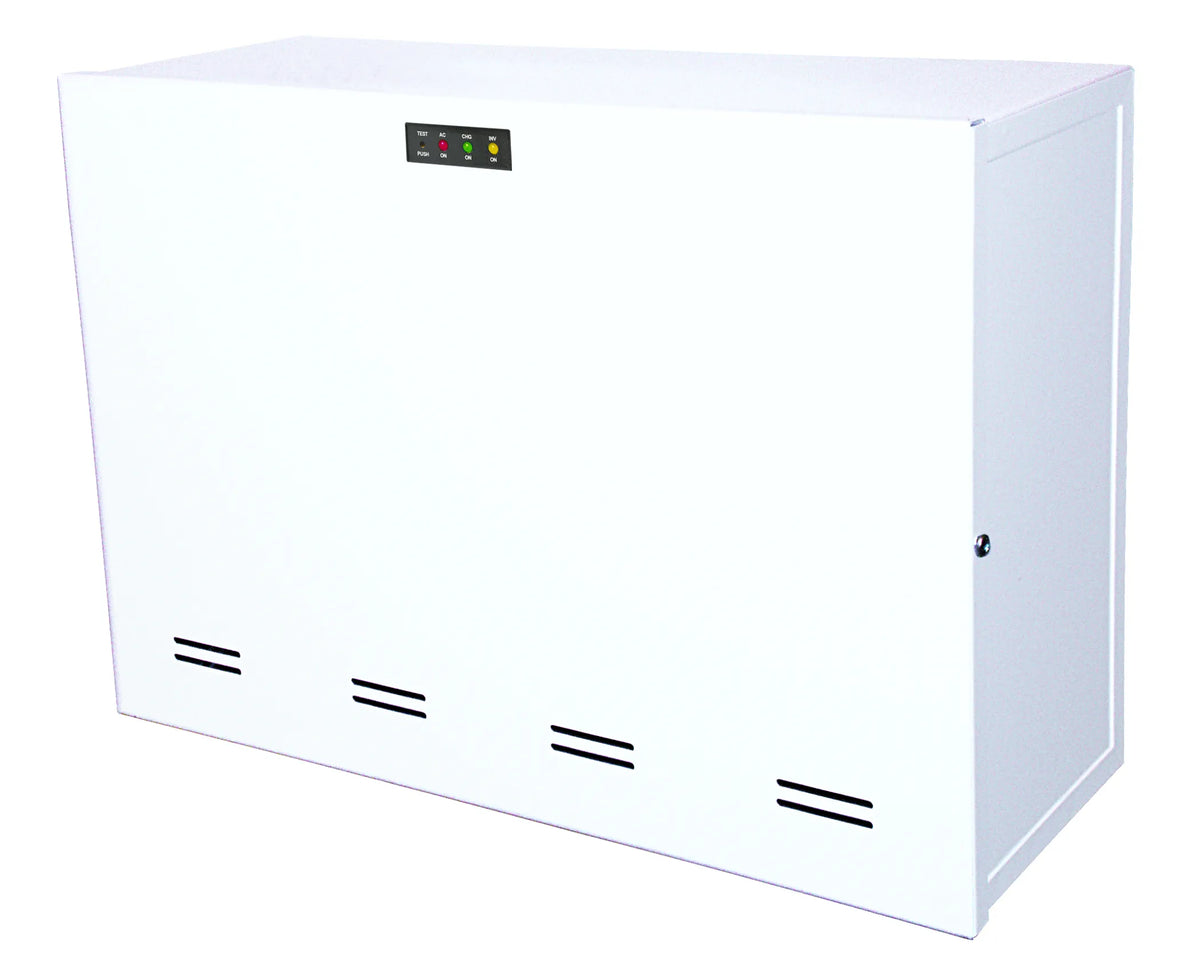

Surface Mount Mini Electrical Inverter 220 Watts- Pulse width modulated
- Mini-electrical inverter systems for powering up to 220 watts of incandescent, fluorescent, induction or LED
lighting loads. Pulse width modulated (PWM) output design provides clean, 60Hz. sinusoidal emergency power to loads. - Surface mounting fixtures. MPS models support Normally-ON, Normally-OFF or SWITCHED operation.
- Input Voltages: 120 or 277VAC field selectable.
- Input Frequencies: 60Hz ±2%
- Input Protection: Provided by Service Panel, Rated 20A max.
- Output Voltages: (60Hz) 120 or 277VAC
- Waveform: Sinusoidal (digitally controlled, PWM design)
- Output Frequencies: 60Hz. ±0.3Hz during emergency cycle
- Output Distortion: Less than 3% THD (linear load)
- Output Protection: Inverter fuse
- Heavy duty steel cabinet is finished in white baked-on powder paint providing scratch and corrosion resistance.
