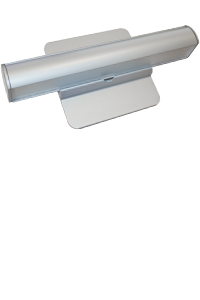

The NF5 is a dramatically compact, extreme low profile, architectural linear emergency unit offering exceptional over-the-door lighting with a 90° full cut-off light distribution. An optional mullion mount for typical glass front entrances or dividing walls provides an architectural unique look to the buildings emergency lighting.

FEATURES

• Illuminates a uniform 12’ x 25’ area providing safe and effective outdoor emergency egress lighting

• Extreme low profile, linear design

• 10 watts of LED emergency power

• Wet location listed to UL924 and IP66 standards

• Optical LED lens coupled with prismatic polycarbonate lens for optimal light output and protection.

• Maintenance-free NiMH battery, standard

• Optional mullion mount canopy, standard with NiCad battery

• Optional PathSafe security/ night lighting (SEC) allows the fixture to be used as an emergency lighting and as security/night lighting fixture

• Optional Guardian (G2) self-testing/ self-diagnostics available

• Standard finishes: White or Brushed Aluminum

• External LED status indicator and test button

• 120/277VAC, 50/60Hz input

• Made in U.S.A.
