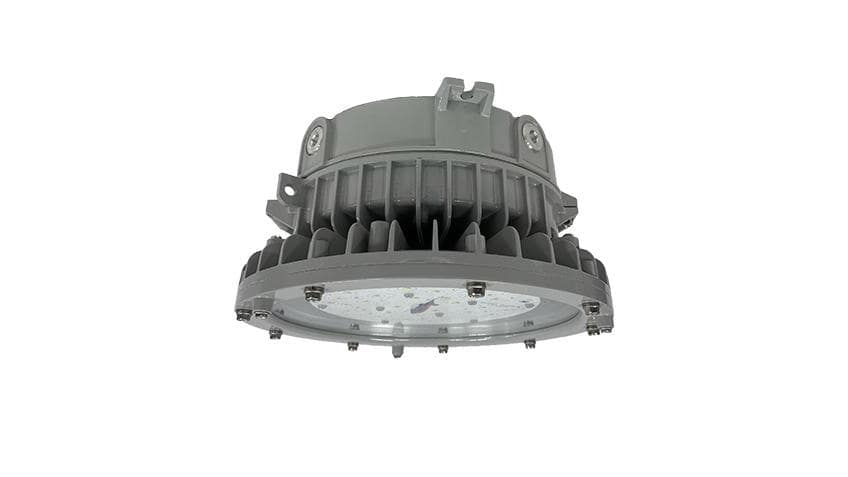

LED Area Light Hazardous Locations- Class I, Division II - Class II, Division II - Class III
$1,069.00
Availability : In Stock
Product Type :
Vendor : ESW Supply
SKU : AZ-LED-HZALJ
LED Area Light Hazardous Locations- Class 1 Div 2 - Quick Ship Industrial | Marine | Oil Field Low profile body, less than 5” high Interchangeable optics with Type I, III, V and wide distribution options Spring pressure connection terminal block Field replaceable LED circuit boards and drivers with quick disconnects...
LED Area Light Hazardous Locations- Class 1 Div 2 - Quick Ship
Industrial | Marine | Oil Field
- Low profile body, less than 5” high
- Interchangeable optics with Type I, III, V and wide distribution options
- Spring pressure connection terminal block
- Field replaceable LED circuit boards and drivers with quick disconnects
- Hinged mount for access to internal components
- Optional trunnion mount with locking positions in 15 degree increments
- Two (2) safety cable attachment points
Classifications:
- Class I, Division 2, Groups A, B, C & D
- Class II, Divisions 1 & 2, Groups E,F & G
- Class III
- Class I, Zone 2, Group IIA, IIB, IIC
- Zone 21
- Simultaneous Presence
- UL 1598A Marine Outside Type
- UL 1598 Wet Locations
- UL 8750 LED Safety
- UL 844 Hazardous Locations
- UL 924 Emergency Lighting
- Emergency Battery Backup
- -40°C to 70°C Ambient Temperature
- CSA C22.2 No. 250.0-08
- CSA C22.2 No. 137-M1981 (R2104)
- NEMA 4X
- ABS Type Approved
- IP66
- Tested to LM79,LM80
- Factory Sealed
- IECEx
- ATEX
Standard Materials:
- Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
- Gaskets: One-piece silicone
- Lens: Tempered glass or polycarbonate
- Hardware: Stainless Steel
