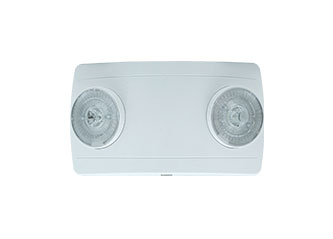

Ultra Compact High Wattage LED Emergency Lighting Unit 1 or 2 Watt Heads
Availability : In Stock
Product Type : Modern Emergency Lighting
Vendor : Modern Emergency Lighting
SKU : ESW-ULTRA
• Injection-molded UL94V-0 flame rated thermoplastic housing
• 1 watt LED lamp heads provide 150 lumens and up to 16' on center spacing
• 2 watt performance LED lamp heads provide 250 lumens and up to 32' on center spacing
• Ultra bright 6000K SMD LEDs
• Wall or ceiling back mount
• Tool-less design allows for fast and easy installation
• Guardian (G2) option available (LED-52 only)
• Remote option provides 2 watts of remote capability (LED-52 only)
• UL 924 and cUL certified
• 120/277VAC, 60Hz
• Standard white finish; optional black
• Suitable for damp locations
Precision molded unit and lamp housings constructed of UV stable UL 94V-0 flame retardant, corrosion resistant thermoplastic. Units resist denting, peeling, scratching and corrosion. Tool-less access provided for easy maintenance.
Two fully adjustable, attractive lamp heads allow for maximum light to be delivered to the path of egress. Fixtures are supplied with high powered SMD 1 watt LED lamps providing 150 total lumens or 2 watt LED lamps providing 250 total lumens, in a pure white color temperature of 6000K. The LEDs have an estimated life over 50,000 hours with normal use. The performance optics provide up to 32 foot on center spacing.
Dual-voltage input 120 or 277VAC @ 60Hz
Nickel Cadmium Battery (NiCad)
Nickel cadmium batteries are maintenance-free with a life expectancy of 15 years. Nickel cadmium batteries offer high discharge rates and continue to perform in a vast temperature range from 0°C to 40°C (32°F to 104°F)
Nickel Metal Hydride Battery (NiMH) Standard with remote capability
Nickel metal hydride batteries are maintenance-free with a life expectancy of 15 years. NiMH batteries perform optimally in temperatures ranging from 0°C to 40°C (32°F to 104°F)
The LED-51 and LED-52 will operate for a minimum of 90 minutes during a loss of power with a 48 hour maximum recharge time for the battery.
Remote Capable (Option: R2 - Available with LED-52 only)
The R2 option provides an additional 2 watts of remote capability. For use with RL52 remote lamp
The unit features a solid-state switching transistor which eliminates damaged contacts or mechanical failures associated with relays. The switching circuit is designed to detect a loss of AC power and automatically energizes the lamps. Upon restoration of the AC voltage, the emergency lamps will switch off and the charger will automatically recharge the battery.
Our test button is easy to locate and allows for manual verification of proper operation of the transfer circuit and emergency lamps.
A universal J-box mounting pattern and rear keyhole slots are provided for wall or ceiling mounting.
Guardian Self-Test/Self-Diagnostics (Option: G2 - Available with LED-52 only)
The Guardian circuit continuously monitors the operating condition of the AC power, battery supply voltage, emergency lamp continuity and charging circuit.
The purpose of this option is to provide visual signaling in response to a fault. If a failure is detected, visual status will occur immediately via the CHARGER LED and/or the BATTERY FAULT LED. The LEDs will stay illuminated until the fault is corrected.
The Guardian circuit also monitors the transfer circuit as well as performing automatic code compliant testing. The Guardian circuit will perform a 30 second discharge and self-test every 28-30 days and a 90 minute discharge and Self-test every 6 months.
Conformance to Codes and Standards
The LED-51 and LED-52 Series is UL listed and meets or exceeds the following: UL 924, cUL, NEC requirements and NFPA 101.
Any component that fails due to manufacturers defect is guaranteed for 1 year with a separate 5 year pro-rated warranty on the battery. The warranty does not cover physical damage, abuse or acts of God. Manufacturer reserves the right to charge for such repairs if deemed necessary.
