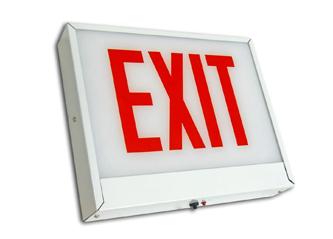

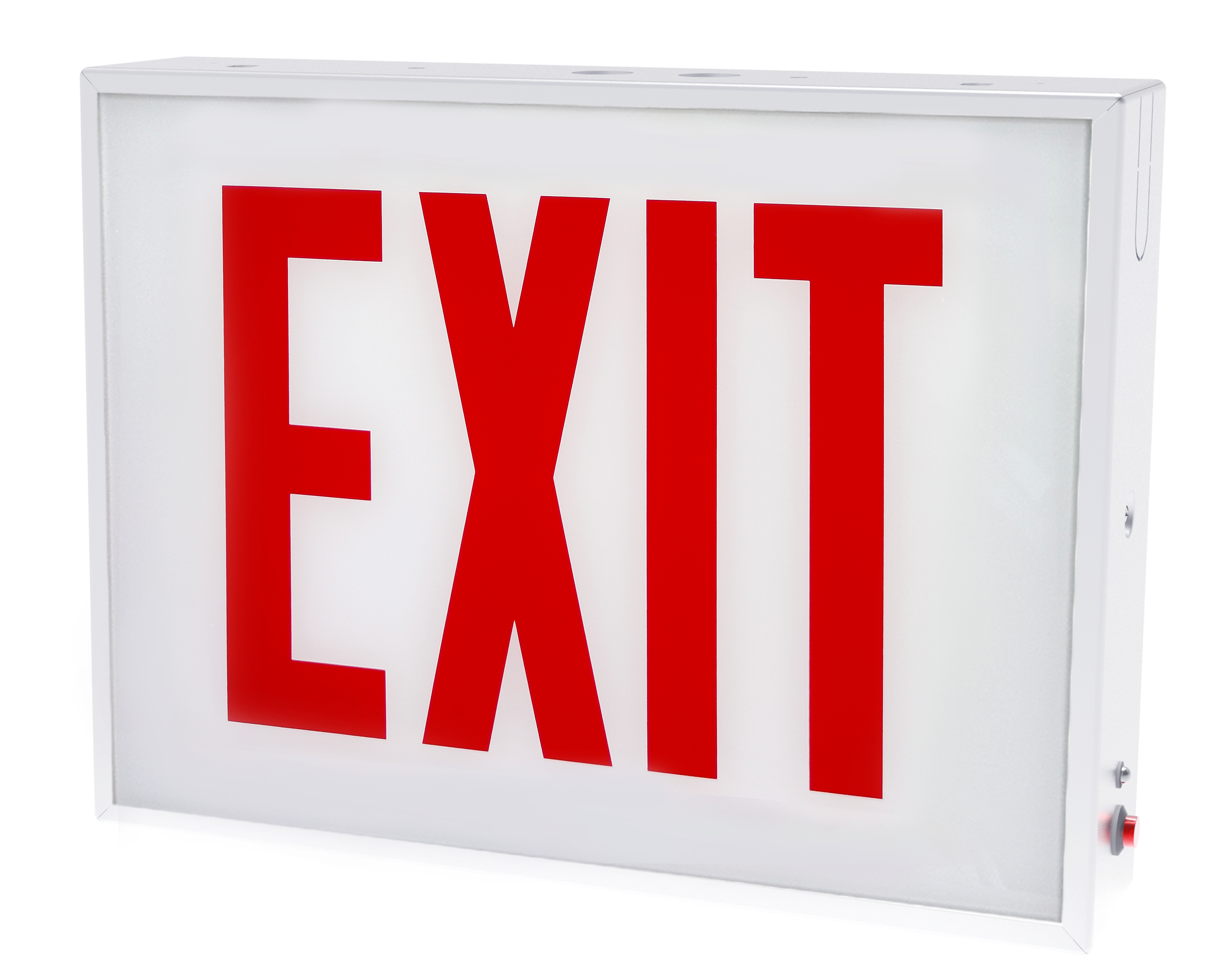

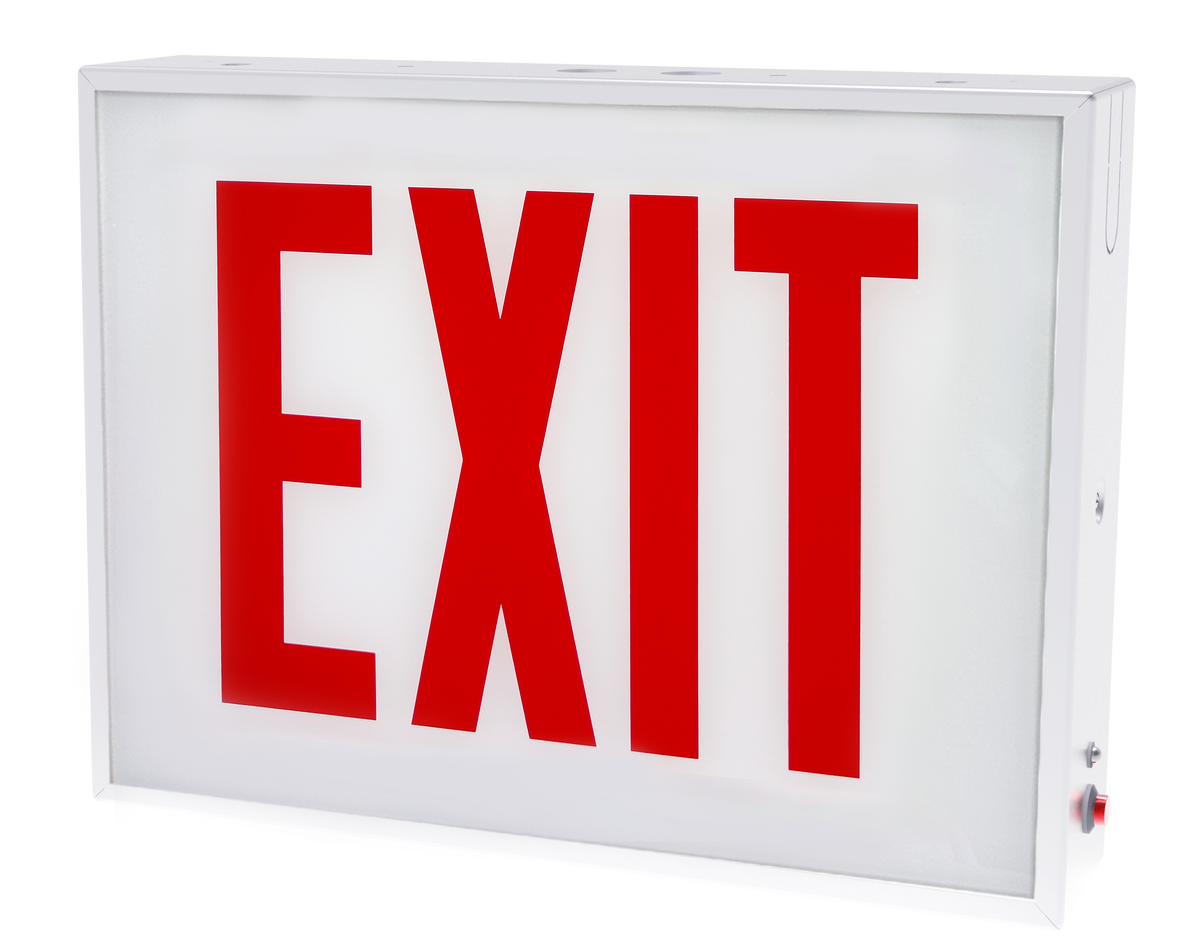

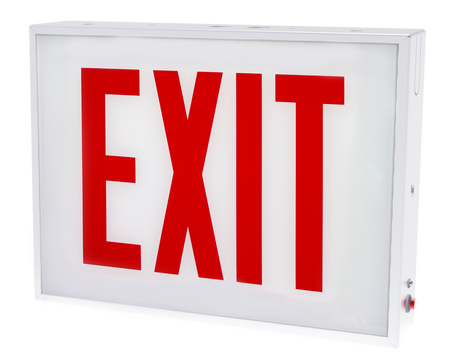

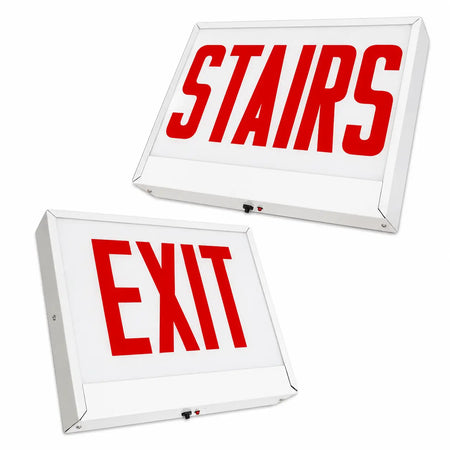

Chicago Approved LED Exit Sign Steel - Universal Mount - 120 Minute Battery
Availability : In Stock
Product Type : Chicago Approved Exit Signs
Vendor : Chicago Approved Exit Signs
SKU : ESW-SLED-C
The ESW-SLED-C feature Energy saving LED AC-only and emergency exit models meet City of Chicago requirements. Rugged steel signs for wall, ceiling or end mount applications.
Housing, Cover and Stencil Face: ESW-SLED-C Series exits are constructed of heavy duty steel finished in white baked-on powder paint providing scratch and corrosion resistance. Optional black (-B) finish is available, see Options on front for ordering details.
Letter Size: 6" letters with 3/4" stroke on translucent glass panels

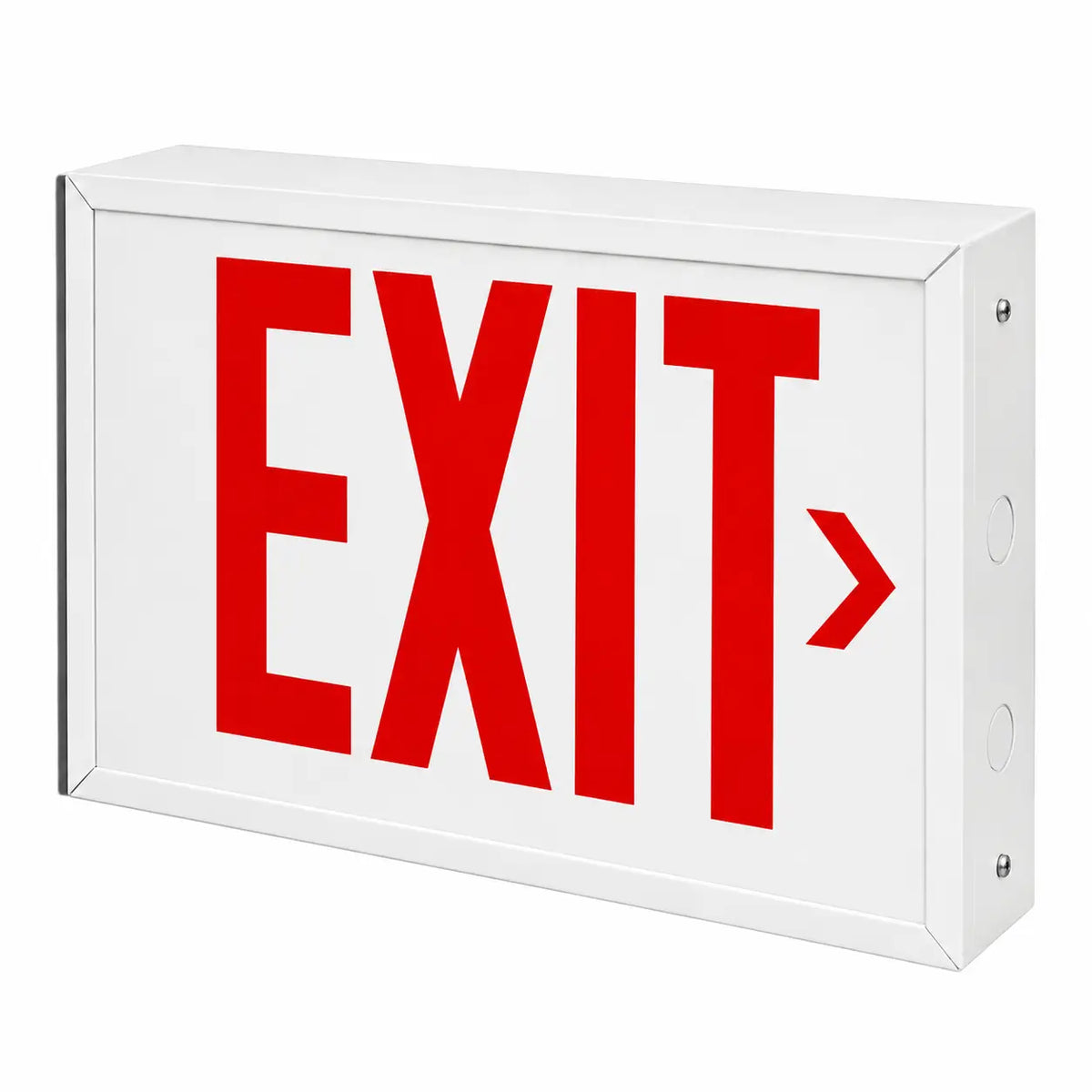

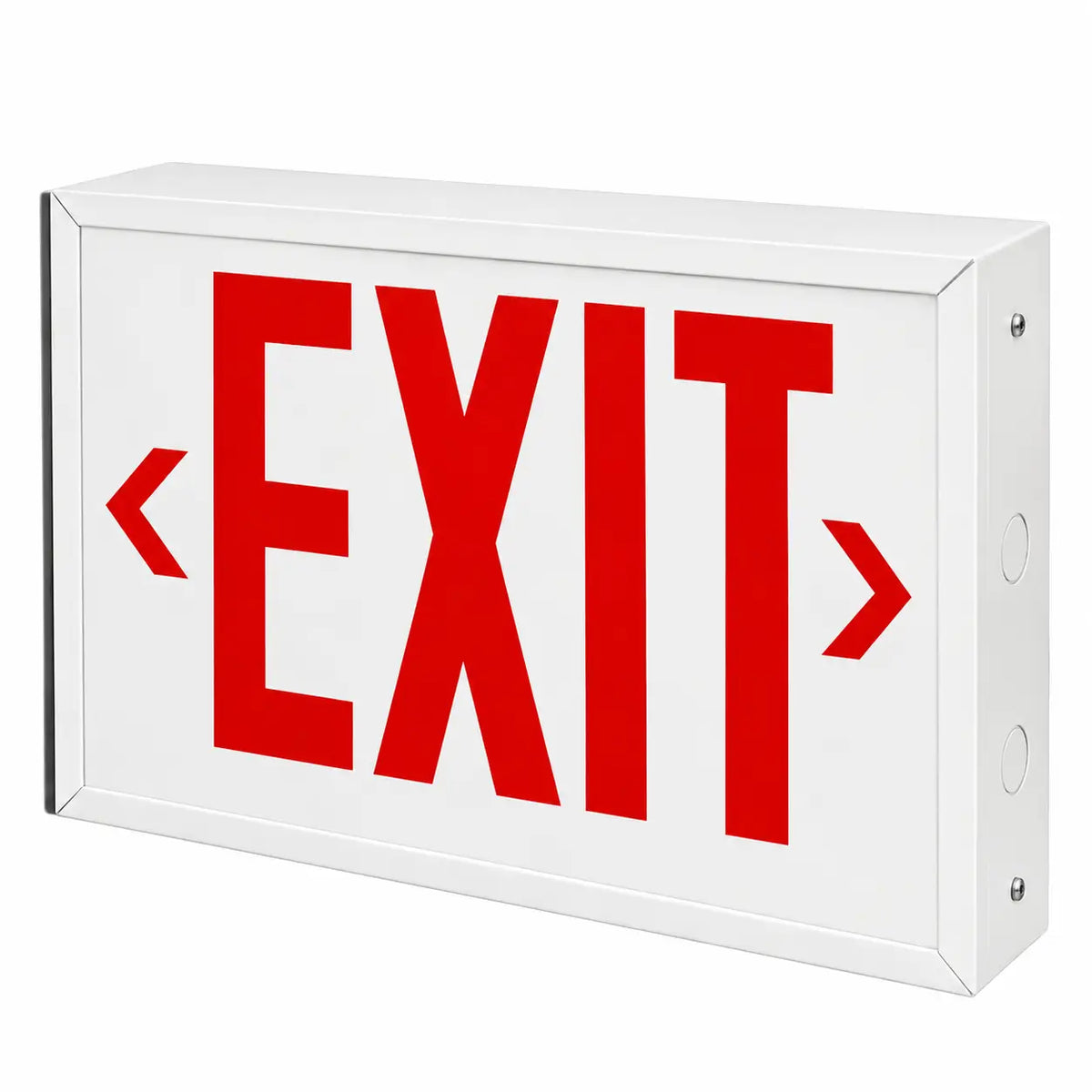

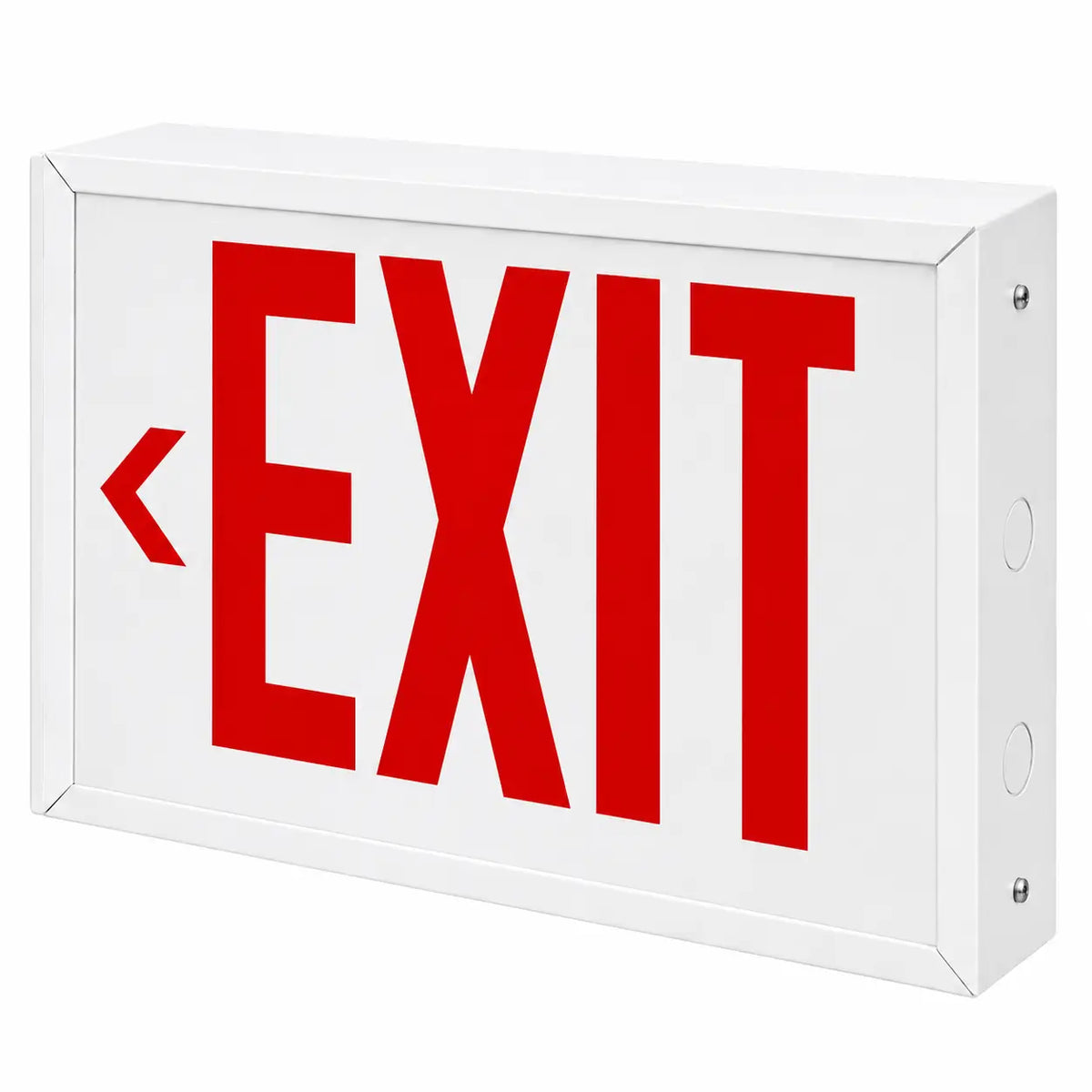

Directional Indicators: Full length directional arrows to meet City of Chicago visibility requirements.
Light Source: Exit face illumination is provided by a special high intensity indirect white LED lighting strips. Letter brightness and illumination uniformity exceed UL requirements. ESW-SLED-C combination models with side mounted lighting heads are provided with 6 volt, 12 watt (-08) halogen bi-pin lamps. Lamp Life: LED Lamps - 25 years, DC lamps - 100 hours (estimated averages)
Wall Mounting: Backplates on single face models are supplied with knockouts for attachment to wallsurfaces and standard 31/2" and 4" electrical boxes. Ceiling/End Mounting: Mounting canopies are provided for attachment to standard 31/2" and 4" electrical boxes in ceiling or end mount applications
120V 277V AC Models 9.6W 9.2W Emergency Models 10.6W 10.2W Power Factor (all models): 0.85 lagging
All models are UL Listed and meet NFPA 101 Life Safety Code, NEC, OSHA and City of Chicago codes. Emergency models are UL924 Listed.
CHARGER AND ELECTRONICS
Charger Type: All emergency models utilize a fully automatic, temperature compensating, variable rate charger. Utility Input: 120/277VAC, 60 Hz. Temperature Range: 68°F to 86°F (20°C to 30°C) Recharge Duty Cycle: 24 hours Load Transfer: Solid state transfer circuit Controls: Momentary test switch and LED AC-On
indicator light Safety Circuitry: AC Lockout: Prevents battery discharge prior to initial unit power-up saving installation time. Low Voltage Battery Disconnect: Protects the battery from being severely damaged by deep discharge during prolonged power failures.
Upon failure of the normal utility power, a solid-state transfer switch automatically activates the DC incandescent emergency lamps providing uninterrupted operation. Emergency illumination will be supplied for a minimum of 120 minutes on emergency models or 90 minutes on combination (-DEH) models. During emergency operation, the exit battery is protected from severe discharge damage by an automatic low voltage disconnect circuit that discontinues unit operation when battery voltage reaches 87.5% of nominal. When normal utility power is restored, the battery is automatically disconnected from the load and a recharging cycle begins that will return the battery to full capacity within 24
OPTIONAL SELF-DIAGNOSTIC CIRCUIT
The optional SX self-diagnostics circuit automatically cycles the emergency lighting unit every 25-30 days. The SX circuit checks for battery charging and over charging, battery capacity and reports any system malfunction. By design the SX does not activate the lighting heads, thus avoiding substantial lamp life reduction.
Sealed Lead Calcium maintenance free battery
Unit: 3-years full coverage against defects in materials and workmanship from date of shipment Battery: 3 years full warranty plus an additional 7 years of pro-rata coverage
