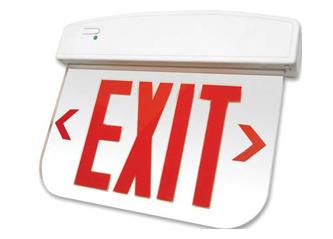

Edge Lit Universal Mount Exit Sign - Thermoplastic Housing - UL Listed

$40.00

Availability : In Stock

Product Type : Edge Lit Exit Signs

Vendor : Edge Lit Exit Signs

SKU : ESW-PLELRXTEU

Illumination Ultra bright, energy efficient, long life Red or Green LED. UV-stabilized ultra-clear acrylic edgelit panel provides consistent, uniform illumination. Double face utilizes factory installed silver or white mylar background panel. Electrical Dual 120/277 voltage standard. Optional multi-tap 208/220/240V available. Unique bi-color LED indicator light alerts occupant on battery condition...
Red
Green (Add $5)


Illumination
  • Ultra bright, energy efficient, long life Red or Green LED.
  • UV-stabilized ultra-clear acrylic edgelit panel provides consistent, uniform illumination.
  • Double face utilizes factory installed silver or white mylar background panel.
    Electrical
  • Dual 120/277 voltage standard. Optional multi-tap 208/220/240V available.
  • Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).
  • Push-to-test switch for mandated code compliance testing.
  • 4.8V long life maintenance-free, rechargeable NiCd battery.
  • Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
  • Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
    Mounting
  • EZ-snap mounting canopy included for top, end or back mount.
    Housing
  • Injection-molded, engineering grade 5VA, flame retardant, high- impact resistant thermoplastic housing in white or black finish.
  • Self-adhesive chevron appliques and guide template provided for directional indication.
    Options
    Custom: Signs available with requested ‘special’ wording
  • SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.
  • 2C: Dual circuit option on the AC-only unit enables it to be connected to two different (one acting as a back-up to the other) supplies at the same time
  • SPV: UL Listed for special voltage option
    Warranty
  • Five year warranty on all electronics and housing. Battery is pro rated for five years
  • Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
  • UL Listed for damp locations (0°C – 50°C)

    Spec Sheet
