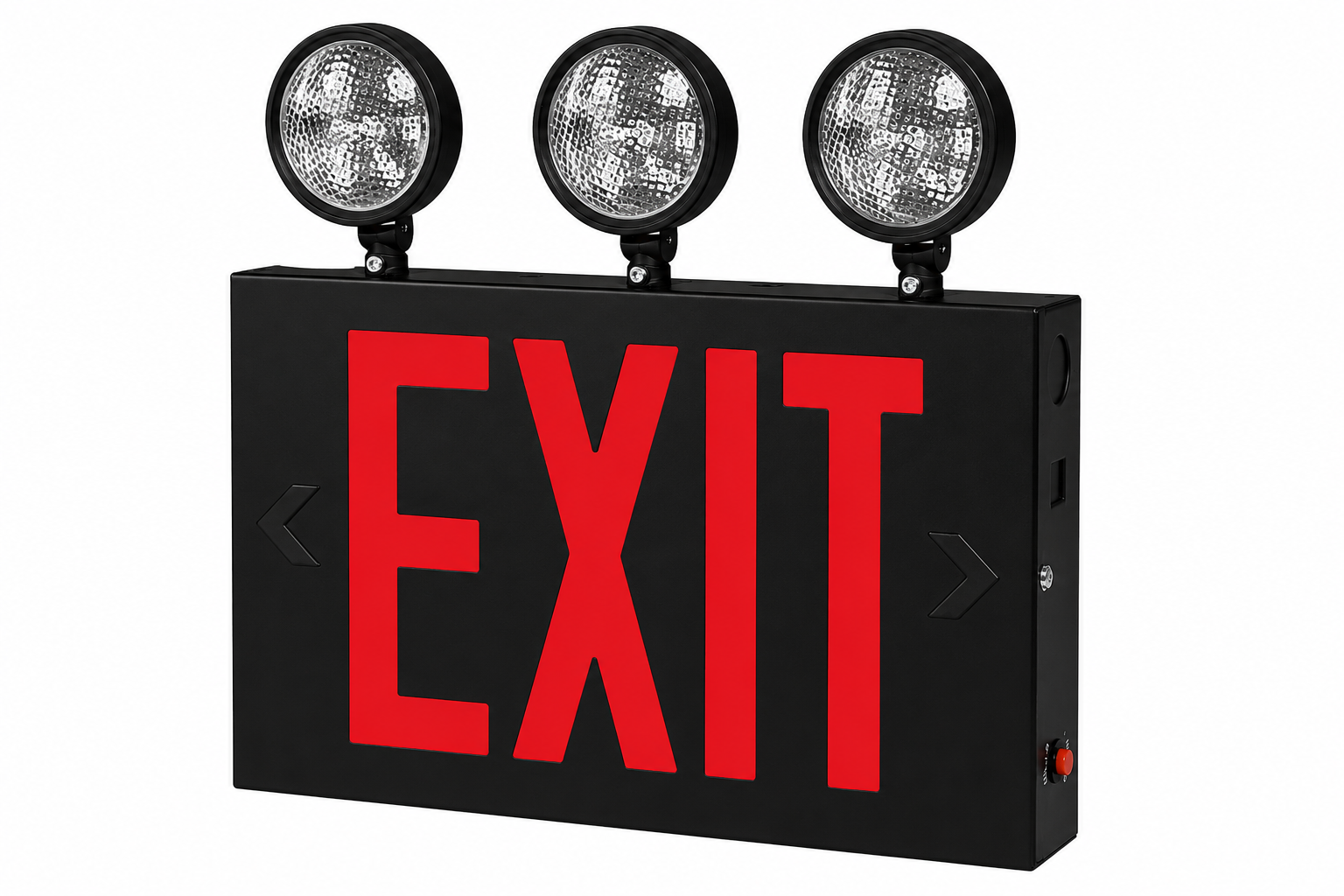

New York Approved Steel LED Combo Exit Sign with Battery Back-up
Availability : In Stock
Product Type : New York Approved Exit Signs
Vendor : New York Approved Exit Signs
SKU : ESW-NY-STC
The ESW-NY-STC Steel LED Combination Units Wall mount combination emergency lighting unit/LED exitsign models supplied with three top-mounted lighting heads. Rugged steel construction throughout
Housing, Cover and Stencil Face: ESW-NY-STC Series combination units are constructed of heavy duty, 20- gauge steel finished in white baked-on powder paint providing scratch and corrosion resistance.
Lighting Heads: Impact resistant, UV stable, flame rated thermoplastic lamp housing and swivel assemblies in color to match unit housing. Lighting heads are fully adjustable and feature lockable swivels.
Letter Size: 8" letters with 3/4" stroke Directional Indicators: Removable chevron arrows sized to meet UL visibility requirements. Illumination Light Source: Exit illumination is provided by the exit's indirect LED panel for both AC and emergency illumination. All models are supplied with three 12 volt, 12 watt halogen sealed beam lamps Lamp Life: - LED AC/DC Lamps - 25 years, Incandescent DC lamps - 100 hours (estimated average)
Wall Mounting: Unit backplate is supplied with knockouts for attachment to wall surfaces andstandard 31/2" and 4" electrical boxes.
LED Lamp Models 4W
All models are UL924 Listed and meet NFPA 101 Life Safety Code, NEC, OSHA and New York City Codes.
CHARGER AND ELECTRONICS
Charger Type: All models utilize a fully automatic, temperature compensating, variable rate charger. Utility Input: 120/277VAC, 60 Hz. Temperature Range: 68°F to 86°F (20°C to 30°C) Recharge Duty Cycle: 24 hours Load Transfer: Solid state transfer circuit Controls: Momentary test switch and LED AC-On indicator light Safety Circuitry: AC Lockout: Prevents battery discharge prior to initial unit power-up saving installation time. Low Voltage Battery Disconnect: Protects the battery from being severely damaged by deep discharge during prolonged power failures. DC Overload and Short Circuit Protection: Provided by a disconnect circuit that automatically resets itself when the fault condition is corrected. Brownout Protection: Automatically switches the unit to emergency mode when utility voltage is reduced to the point at which most fluorescent light fixtures would extinguish.
Upon failure of the normal utility power, a solid-state transfer switch automatically connects the exit sign's battery to the LED lamps providing uninterrupted operation. Emergency illumination will be supplied for a minimum of 90 minutes. During emergency operation, the exit battery is protected from severe discharge damage by an automatic low voltage disconnect circuit that discontinues unit operation when battery voltage reaches 87.5% of nominal. When normal utility power is restored, the battery is automatically disconnected from the load and are charging cycle begins that will return the battery to full capacity within 24 hours.
Sealed Lead Calcium maintenance free battery designed to provide many years of dependable service.
Unit: (excluding lamps) 3-years full coverage against defects in materials and workmanship from date of shipment Battery: 3 years full warranty plus an additional 7 years of pro-rata coverage.
15" Length 9.5" and 15" Includes Lights Height 4" Width
