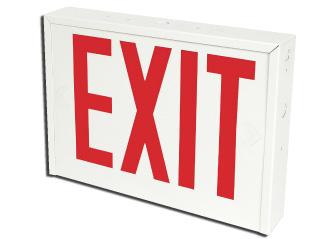

New York City Code Exit Sign - Red LED 8" Letters - Battery

$64.00

Availability : In Stock

Product Type : New York Approved Exit Signs

Vendor : New York Approved Exit Signs

SKU : ESW-NY-ST

PRODUCT OVERVIEWThe ESW-NY-ST emergency cavity lit LED exit signs feature classic design, even illumination, low power consumption, long service life and rugged steel construction throughout.CONSTRUCTIONMaterial: ESW-NY-ST Series exits are constructed of heavy duty, 20 gauge steel finished in white bakedon powder paint providing scratch and corrosion resistance. Optional black (-B)...

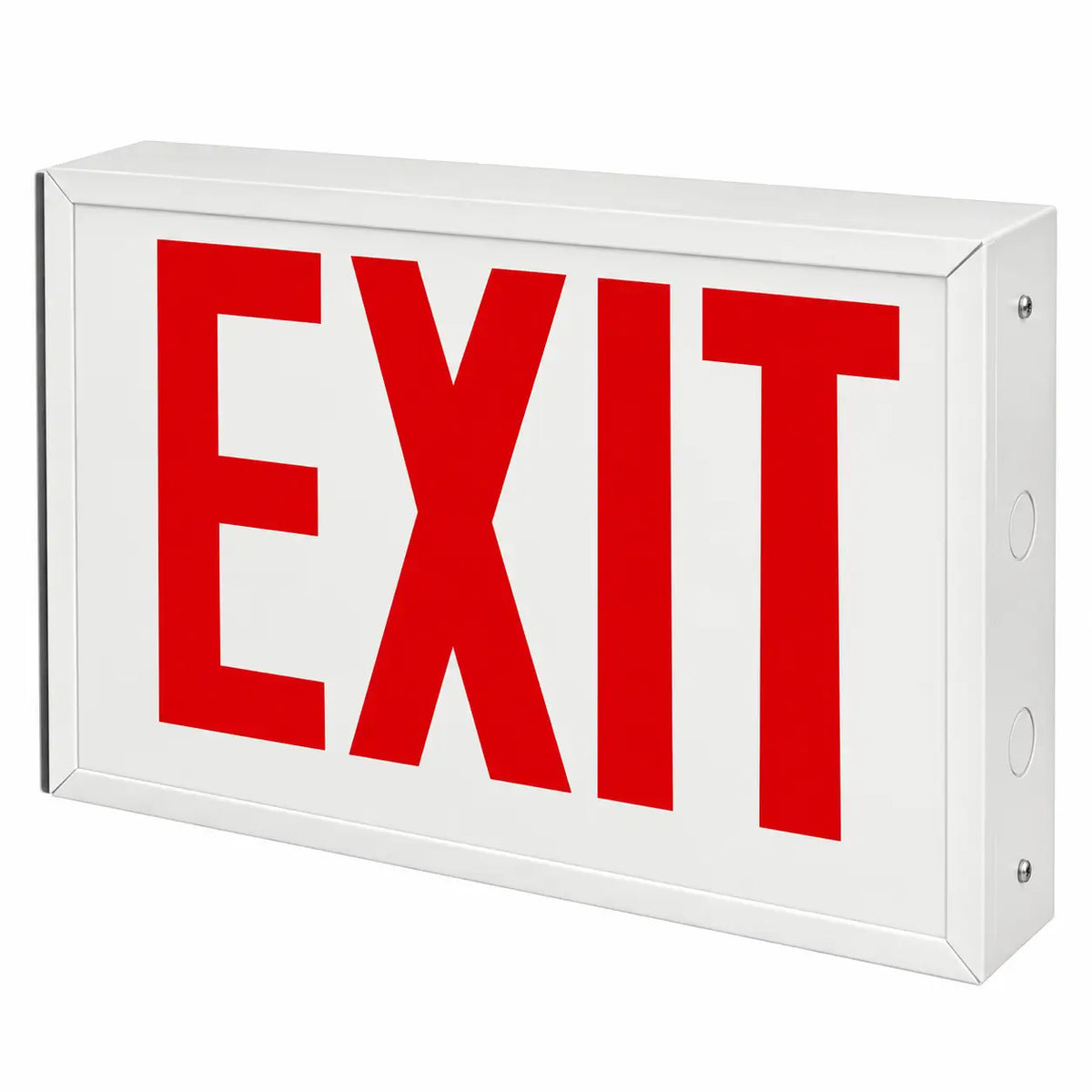

White (Standard)

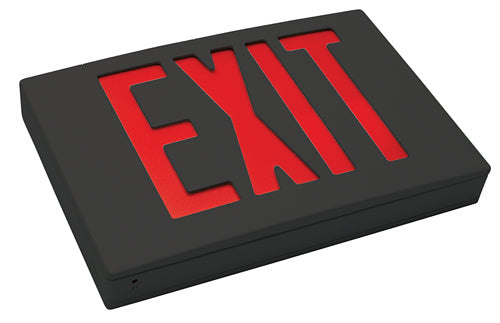

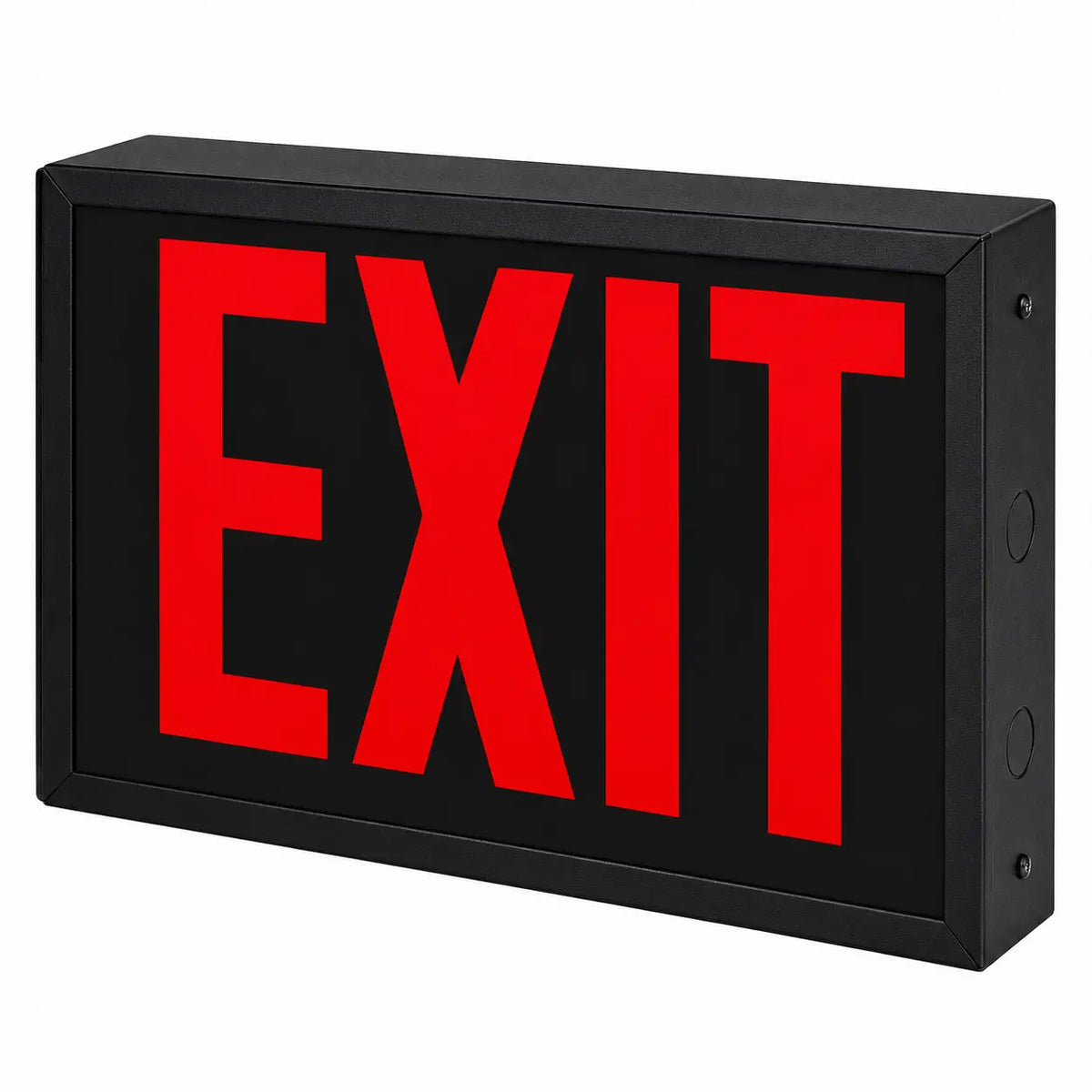

Black (Add $15)


PRODUCT OVERVIEW
The ESW-NY-ST emergency cavity lit LED exit signs feature classic design, even illumination, low power consumption, long service life and rugged steel construction throughout.

CONSTRUCTION
Material: ESW-NY-ST Series exits are constructed of heavy duty, 20 gauge steel finished in white bakedon powder paint providing scratch and corrosion resistance. Optional black (-B) finish is available, see Options on front for ordering details.

EXIT FACE
Letter Size: 8" letters with 1" stroke Directional Indicators: Removable chevron arrows sized to meet UL visibility requirements.

ILLUMINATION
Light Source: Exit face illumination is provided by a special high intensity indirect red LED panel. Letter brightness and illumination uniformity exceed UL requirements. LED Lamp Life: 25 years (estimated average)

INSTALLATION

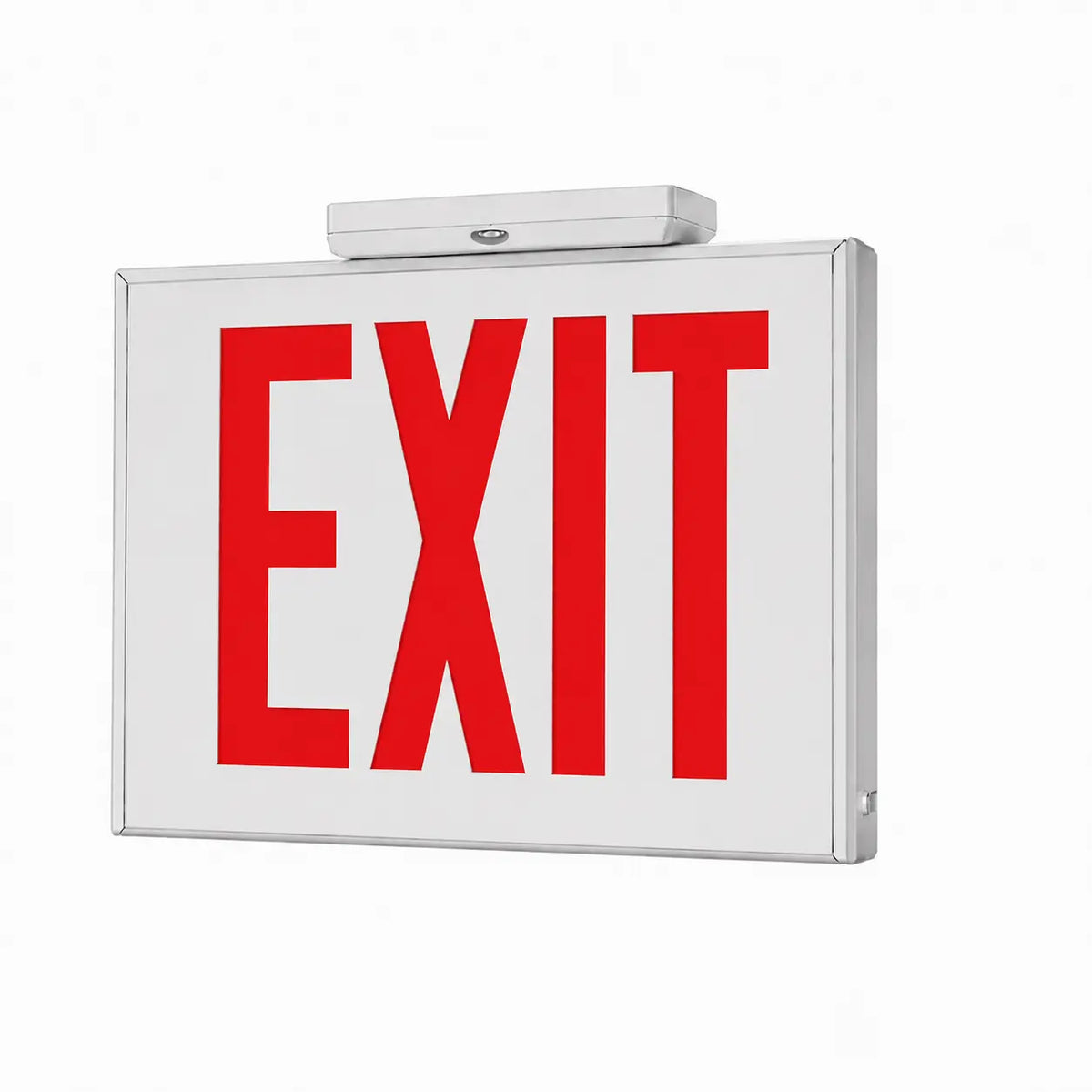

Wall Mounting: Backplates on single face models are supplied with knockouts for attachment to wall surfaces and standard 31/2" and 4" electrical boxes. Ceiling/End Mounting: Mounting canopies are provided for attachment to standard 31/2" and 4" electrical boxes in ceiling or end mount applications.

POWER CONSUMPTION
Red Letters 120V 277V
AC Models 4.8W 4.6W 4.8W 4.6W
Emergency Models 4.8W 4.6W 4.8W 4.6W
Power Factor (all models): 0.85 lagging

CODE INFORMATION
All models are Energystar compliant, UL Listed and meet NFPA 101 Life Safety Code, NEC, OSHA, state and local codes. Emergency models are UL924 Listed.

CHARGER AND ELECTRONICS
Charger Type: ESW-NY-ST models utilize a fully automatic, temperature compensating, constant current charger. Utility Input: 120/277VAC, 60 Hz. Temperature Range: 68°F to 86°F (20°C to 30°C)
Models supplied with damp location (-DL) option operate from 50°F to 104°F (10°C to 40°C) Recharge Duty Cycle: 24 hours Load Transfer: Solid state transfer circuit Controls: Momentary test switch and LED AC-On indicator light Safety Circuitry: AC Lockout: Prevents battery discharge prior to initial unit power-up saving installation time.
Low Voltage Battery Disconnect: Protects the battery from being severely damaged by deep discharge during prolonged power failures.

EMERGENCY OPERATION
Upon failure of the normal utility power, a solid-state transfer switch automatically activates the LED lamps providing uninterrupted operation. Emergency illumination will be supplied for a minimum of 90 minutes. During emergency operation, the exit battery is protected from severe discharge damage by an automatic low voltage disconnect circuit that discontinues unit operation when battery voltage reaches 87.5% of nominal. When normal utility power is restored, the battery is automatically disconnected from the load and a recharging cycle begins that will return the battery to full capacity within 24 hours.Battery Nickel Cadmium maintenance free battery designed to provide many years of dependable service.

WARRANTY
Unit: (including LED lamps) 3-years full coverage against defects in materials and workmanship from date of shipment Battery: 3 years full warranty plus an additional 7 years of pro-rata coverage

DIMENSIONS
12.75" Length 9" Height 2" Width

Spec Sheet
