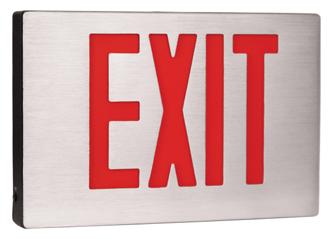

New York Approved Cast Aluminum Exit Sign with Battery Back-up

$85.00

Availability : In Stock

Product Type : New York Approved Exit Signs

Vendor : New York Approved Exit Signs

SKU : ESW-NY-CA

PRODUCT OVERVIEWThe ESW-NY-CA Series exits are constructed of heavy die cast aluminum and supplied standard with a brushed stencil face and corrosion resistant black texture painted body. Mounting canopies supplied with all exits are constructed of heavy die cast aluminum and finished to match housing color.EXIT FACELetter Size: 8" letters...
Aluminum
Black (Add $10)
White (Add $10)


PRODUCT OVERVIEW
The ESW-NY-CA Series exits are constructed of heavy die cast aluminum and supplied standard with a brushed stencil face and corrosion resistant black texture painted body. Mounting canopies supplied with all exits are constructed of heavy die cast aluminum and finished to match housing color.

EXIT FACE
Letter Size: 8" letters with 1" stroke. Directional Indicators: Removable chevron arrows sized to meet UL visibility requirements. Universal Design: All ESW-NY-CA exits are supplied in single face configurations and provide a second letter face for use in double face applications

ILLUMINATION
Light Source: Exit face illumination is provided by a special high intensity indirect red LED panel. Letter brightness and illumination uniformity exceed UL requirements LED Lamp Life: 25 years (estimated average)

INSTALLATION
Wall Mounting: Single face models are supplied with knockouts in the exit housing's back plate for attachment to wall surfaces and standard 3 1/2" and 4" electrical boxes. Ceiling/End Mounting: Mounting canopies are provided with all models for attachment to standard 3 1/2" and 4" electrical boxes in ceiling or end mount applications

POWER CONSUMPTION
120VAC 277VAC
AC-Only Models 2.4 W 2.4 W
Emergency Models 3.3 W 3.7 W

CODE INFORMATION
All models are UL Listed and meet NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes. Emergency models are UL924 Listed.

CHARGER AND ELECTRONICS
Charger Type: ZBLED-NY emergency models utilize a fully automatic, temperature compensating, constant current type chargerVUtility Input: 120/277VAC, 60 Hz. Temperature Range: 68°F to 86°F(20°C to 30°C) Recharge Duty Cycle: 24 hours Load Transfer: Solid state transfer circuit Controls: Momentary test switch and LED AC-On indicator light

SAFETY CIRCUITRY
AC Lockout: Prevents battery discharge prior to initial unit power-up saving installation time. Low Voltage Battery Disconnect: Protects the battery from being severely damaged by deep discharge during prolonged power failures.

BATTERY
Type: Sealed Nickel Cadmium maintenance free battery designed to
provide many years of dependable service.

WARRANTY UNIT
(excluding lamps) 3-years full coverage against defects in materials and workmanship from date of shipment Battery: 3 years full warranty plus an additional 7 years of pro-rata coverage.

DIMENSIONS
15.5" Length 10.5" Width 1.75" Depth
