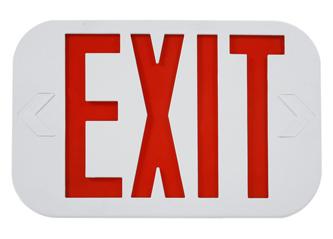

Thermoplastic Illuminex Exit Red Exit Sign LED with Battery - (Case of 6)
Availability : In Stock
Product Type : Thermoplastic Exit Signs
Vendor : Thermoplastic Exit Signs
SKU : ESW-ILXR-CASE
The Illuminex RED case of 6 Series LED Exit Sign combines an attractive, easy-to-install compact contemporary design with proven, ultrareliable electronics to provide the very best in energy efficient emergency lighting. ILX units are completely self-contained, and feature universal mounting, canopy included.
Regulated circuit maintains constant light output throughout emergency mode
Emergency power pack mounts inside exit housing
Solid state, constant current type charger
Height: 7.4" (8.15" with Canopy)
DAMP LOCATION RATING
Supplied standard with Illuminex Series
CONFORMANCE TO CODES & STANDARDS
ETL listed. Meets UL 924, NFPA 101 (Life Safety Code) NEC, and OSHA. Meets state of Minnesota energy-efficient legislation requiring less than 20 watts of power consumption.
Any component that fails due to manufacturer's defect is guaranteed for 1 year from time of shipment. Warranty does not apply to damages caused by improper installation, abuse, fire or acts of God.
Precision molded housing, backplate and mounting canopy constructed of impact-resistant, flame-retardant, UV stable thermoplastic resists denting, peeling, scratching and corrosion with NFPA approved field selectable chevrons. Available in white and black finishes.

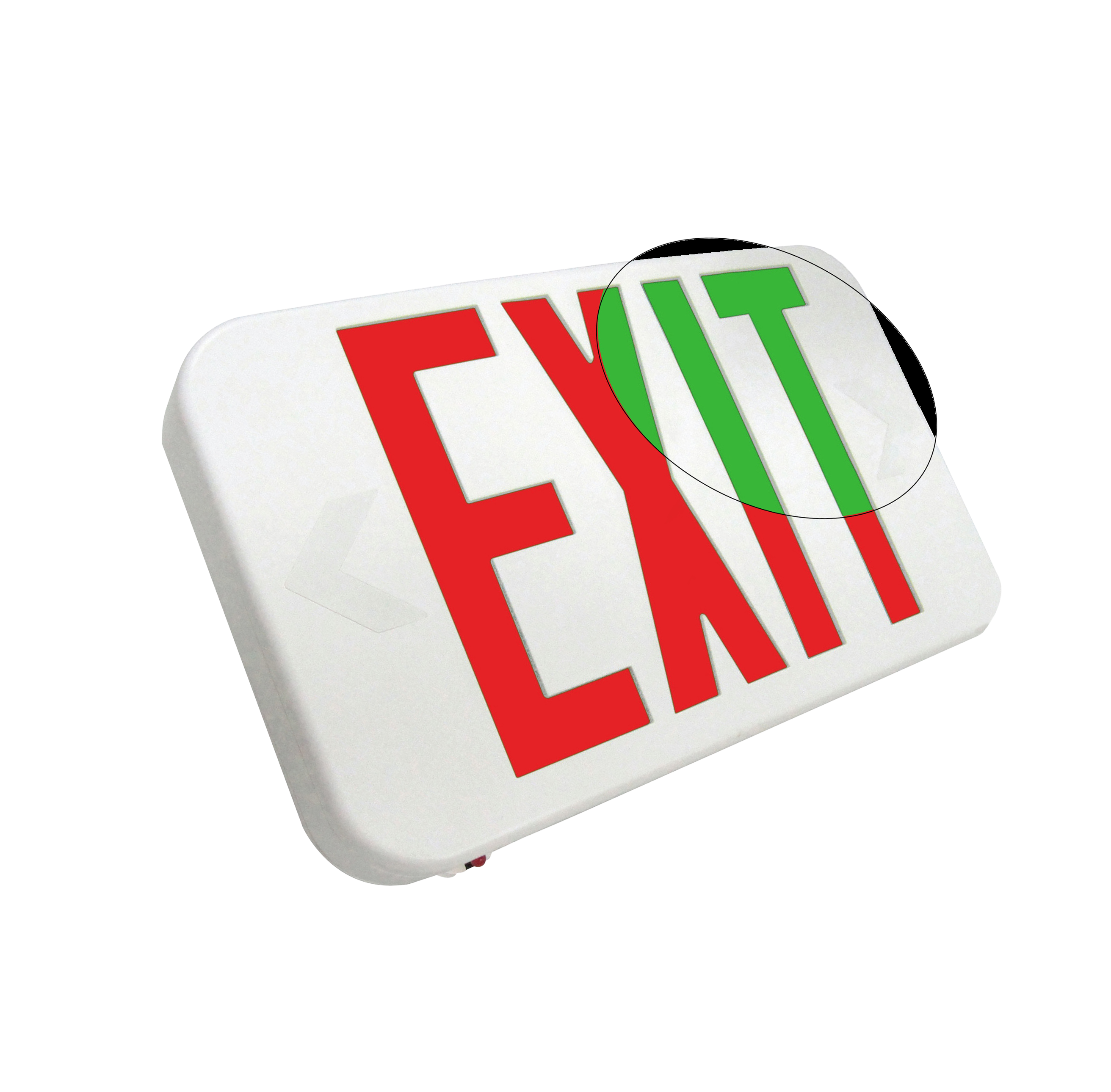

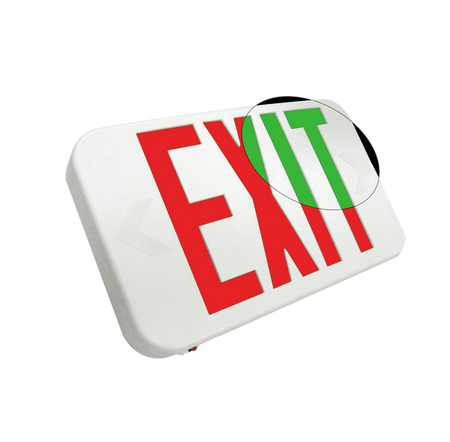

Fully illuminated 6" letters with 3/4" stroke is achieved with high output, long lasting red or green Light Emitting Diodes (LEDs). An exclusive color-matched diffuser eliminates hot spots and striations, providing optimal light output. LEDs and electronics have an expected service life of 25 years.
Simple snap together universal design allows for faceplate and backplate to be fully interchangeable. Mounting canopy is supplied with all signs and snaps into enclosure with positive locking tab.
120/277 VAC dual voltage input with surge protected, solid state circuitry.
Maintenance-free, sealed Nickel Cadmium Battery provides an estimated service life of 12 years with an operating temperature range of 20°F (-7°C) to 95°F (35°C).
Solid state charging circuit with constant current charge and transfer design. Circuit is brown-out protected and provides a minimum of 90 minutes of emergency run time and recharge time of 12 hours. Push to test switch and an LED AC indicator provides simple means for manual test.
SELF-TESTING /SELF-DIAGNOSTIC OPERATION
The circuit continuously monitors the operating condition of the AC power, battery supply voltage, emergency lamp continuity and charging circuit.
If a failure is detected, visual status will occur immediately via the bi-colored LED. LED indicator will illuminate until fault has been corrected.
The G2 also monitors the transfer circuit as well as performing automatic code compliant testing. The self-test will operate the equipment in emergency mode five minutes every 28 days. Also, a 90 minute full-function test is performed every six months.
