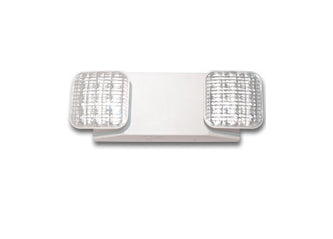

Remote Capable - Thermoplastic ALL LED Two Head Emergency Light

$39.00 $35.00

Availability : In Stock

Product Type : Remote Capable Lights

Vendor : Remote Capable Lights

SKU : EML-LED-R1-W-RC

Remote Capable LED Emergency Light  The Exit Sign Warehouse Thermoplastic All LED Emergency Light ESW-EML-LED-RC features an injection-molded, V-0 flame retardant, high impact, thermoplastic enclosure. This New LED series has fully adjustable heads to provide maximum light coverage. The low-profile and contemporary appearance, combined with LED economy and dependability, the LED-90...


Remote Capable LED Emergency Light


The Exit Sign Warehouse Thermoplastic All LED Emergency Light ESW-EML-LED-RC features an injection-molded, V-0 flame retardant, high impact, thermoplastic enclosure. This New LED series has fully adjustable heads to provide maximum light coverage. The low-profile and contemporary appearance, combined with LED economy and dependability, the LED-90 Series is an effective solution for office, retail, and residential emergency lighting applications. The ESW-LED Series is suitable for wall or ceiling mount and can be installed onto most types of surfaces. The lamps are easily adjustable and illuminated for at least 90 minutes after power is lost. The universal mounting plate allows for effortless installation. Operates using 120 or 277v AC power.
BENEFITS

  • Each lamp contains 12 long lasting, efficient ultra-bright white LeDs.
  • Damp location rated
  • Remote capacity option available
  • Universal J-box mounting with quick-connect adapters for fast, simple installation
  • Compact, low profile design
  • Completely self-contained, fully automatic operation
  • Maintenance-free NiCad battery
  • 120/277 VAC operation
  • Injection-molded, V-0 flame retardant, high impact, thermoplastic housing
  • Low-profile test switch and LED charge indicator light
  • Short circuit, voltage surge, brown-out and low battery voltage disconnect protected
    APPLICATION
    Emergency lights illuminate the exit pathway in case of an emergency power outage. The LED-90 Series is designed for indoor commercial use in all types of applications. The LED-90 emergency light will provide a minimum of 90 minutes of battery backup powered emergency illumination.
    EXTERNAL SPECIFICATIONS
    The LED-90 Series is constructed from an injection-molded, v-0 flame retardant, high impact, thermoplastic enclosure. Plastic emergency lights are favored for their usability and affordability. This model comes complete with two fully adjustable LED head lights, a back plate for mounting, and all installation hardware. An external battery backup test button is standard on all emergency lights.
    INTERNAL SPECIFICATIONS
    Each lamp has 12 ultra-bright white LEDs, positioned to cover a wide range. The LEDs last longer than conventional bulb signs, providing up to 100,000 hours of use without failure. LEDs are also excellent for minimizing energy consumption, starting at only 4 watts, and are a great maintenance- free solution.
    ELECTRICAL SPECIFICATIONS
    120/277v AC dual-voltage operation is standard. Other voltages available upon request such as 220v and 240v. The LED-90 Series utilizes a maintenance-free NiCad battery and features short circuit, voltage surge, brown-out and low battery voltage disconnect protection.
    CODE COMPLIANCE
    U.L. Listed and meets or exceeds the following: U.L. 924, N.E.C. requirements and N.F.P.A. 101.
    WARRANTY DETAILS
    All components are guaranteed for 3 years and a separate 5 year warranty for the battery. The warranty does not cover physical damage, abuse or acts of God. Manufacturer reserves the right to charge for such repairs if deemed necessary.
    DESIGNER
    The ESW-LED Series emergency light is available in a white or black housing finish. Options for Self Test/Self Diagnostics (G2) and the Remote capacity (For LED remote Lamps only) are available to suite your specific needs.
    OVERAL VALUE
    This mode is dependable and comes at a great value. It will make your facility code compliant for years to come.
    INSTALLATION
    This emergency light is suitable for surface (wall and ceiling) installation. This model is suitable for indoor location installations on normally inflammable surfaces. Use two of three provided wires to connect the unit to AC power. Use the black (120v) and white (Common) wires for 120v AC connections and the red (277v) and white (Common) wires for 277v AC connections.

  • Specification Sheet Click Here
