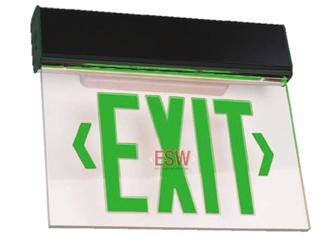

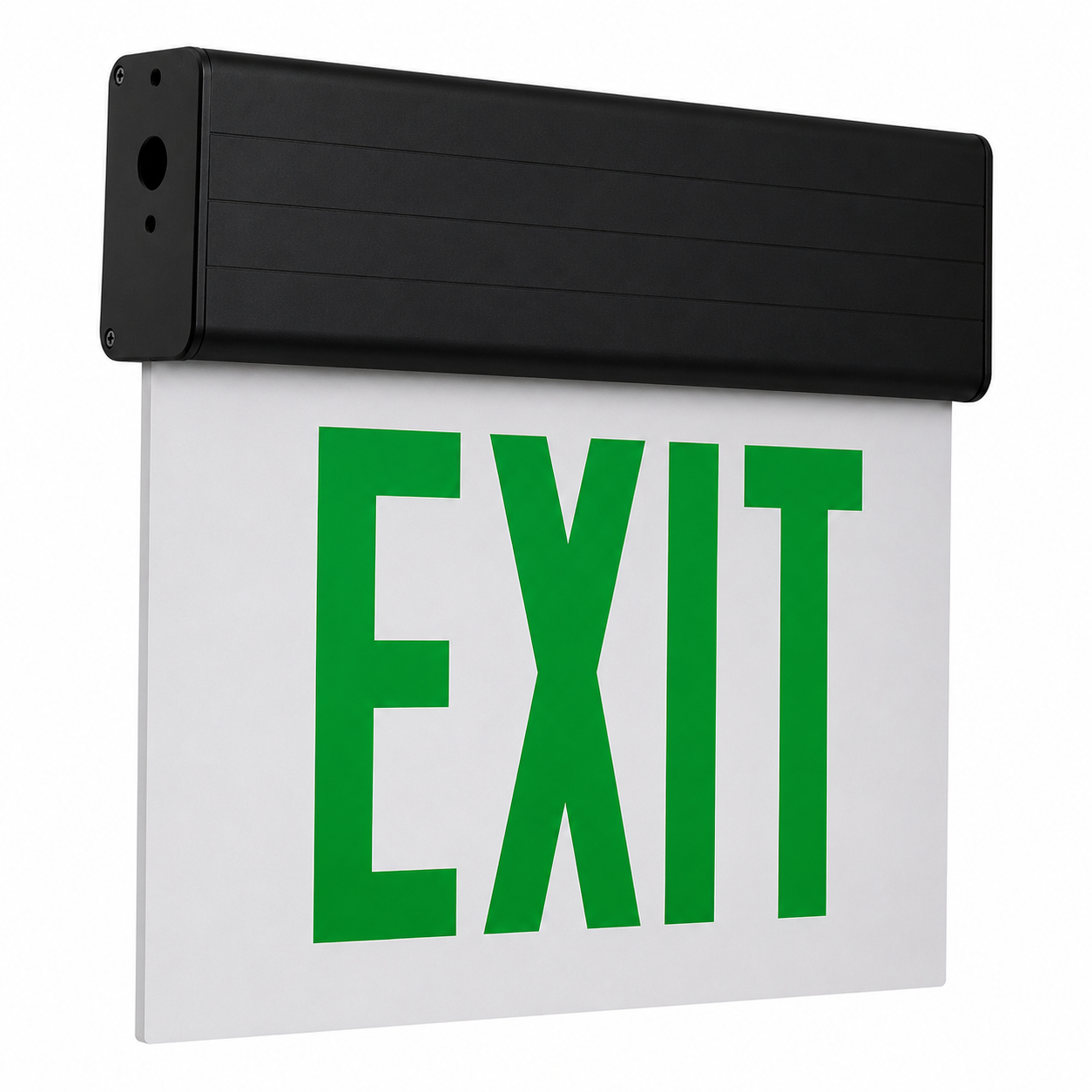

Edge Lit Exit Sign Green LED Black Housing with Battery Back-up

$85.00

Availability : In Stock

Product Type :

Vendor : Exit Sign Warehouse

SKU : ESW-EL-GB

PRODUCT OVERVIEWThe ESW-EL-GB series has been developed with style, ease of installation and dependability in mind. Utilizing high-output indirect LED technology, the ESW-EL-GB provides a recessed or surface mounted edge-lit EXIT sign with excellent light distribution. The ESW-EL-GB series can be wall / ceiling recessed or surface mounted. End mount...


PRODUCT OVERVIEW
The ESW-EL-GB series has been developed with style, ease of installation and dependability in mind. Utilizing high-output indirect LED technology, the ESW-EL-GB provides a recessed or surface mounted edge-lit EXIT sign with excellent light distribution. The ESW-EL-GB series can be wall / ceiling recessed or surface mounted. End mount configurations are also available. The ESW-EL-GB series can be configured for AC only and Self-Powered operation versions. The ESW-EL-GB series features universal field adjustable chevrons.

INTERNAL SPECIFICATIONS
AC ONLY: comes standard configured with high-output LED technology, 120/277VAC input.
SELF-POWERED: comes standard configured with high-output LED
technology, 120/277VAC input. Nickel-cadmium batteries provide a
minimum 90 minutes of emergency duration. Optional 120 minute
duration battery is available. Solid state charger & transfer.

EXTERNAL SPECIFICATIONS
The ESW-EL-GB series housing backbox is constructed from durable 20 gauge steel. The acrylic face plate is available in both single face or double face versions, with a clear, white, mirrored or self-luminous background (please specify). Field adjustable chevrons are standard. Recessed versions are supplied standard with a white, baked powder coat steel trim plate. Available in custom epoxy-based powder coat finishes (please specify). External LED monitor light and test switch are standard on self-powered versions.

INSTALLATION
The ESW-EL-GB series is suitable for recessed / surface ceiling or wall mounting. Suitable for indoor installations.

EDGE-LIT DESIGN
The ESW-EL-GB series of elegantly designed edge-lit exit signs feature a clean and contemporary look. The design brings style and flexibility to your next prestigious exit sign application. The indirect LED illumination evenly lights the acrylic face with crisp, even light. The ultra thin face plate virtually disappears once installed, yet the EXIT lettering boldly distinguishes the path of egress. The wide variety of finishes and mounting configurations available will ensure that the ESW-EL-GB series can be easily matched to your decor.

ELECTRICAL SPECIFICATIONS
The ESW-EL-GB series is configured with high-output LED lamps. Standard with 120/277VAC input. All LED versions consume only 1.1W nominal power. Optional emergency illumination is provided by the LED light source at the following wattages:
6VDC - 0.5 Watts
12VDC - 1.5 Watts
24VDC - 3.5 Watts

SELF-LUMINOUS FACE
The ESW-EL-GB series can be ordered with an optional self-luminous face panel. The use of photoluminescent technology adds a new level of safety to current signage. The ESW-EL-GB series optional self-luminous panel automatically charges itself in one (1) hour using any available light source. The 80% phosphorus pigmets create a white "glow" which allows the ESW-EL-GB edge-lit series to continually illuminate for up to 4 hours. The added element of safety that photoluminescent technology offers is ideal for use on every edge-lit installation.

MECHANICAL SPECIFICATIONS
The ESW-EL-GB series housing is constructed of sturdy 20 gauge steel. Universal mounting pattern and key hole slots are stamped into the housing providing various mounting options Ceiling recessed versions are supplied standard with removable steel T-Bar ceiling tile mounting brackets. All trim plates are supplied standard with an attractive and durable white, baked powder coat finish. Other colors are available, including custom color matching, please specify. Face plates for the ESW-EL-GB series are constructed of clear, solid acrylic. Field removable directional chevron arrows are standard. Recessed version face plates are held securely in place with two (2) torsion spring clips that allows the face plate to accommodate uneven or angled ceilings and walls. This design leaves no visible screws, nuts or fasteners.
