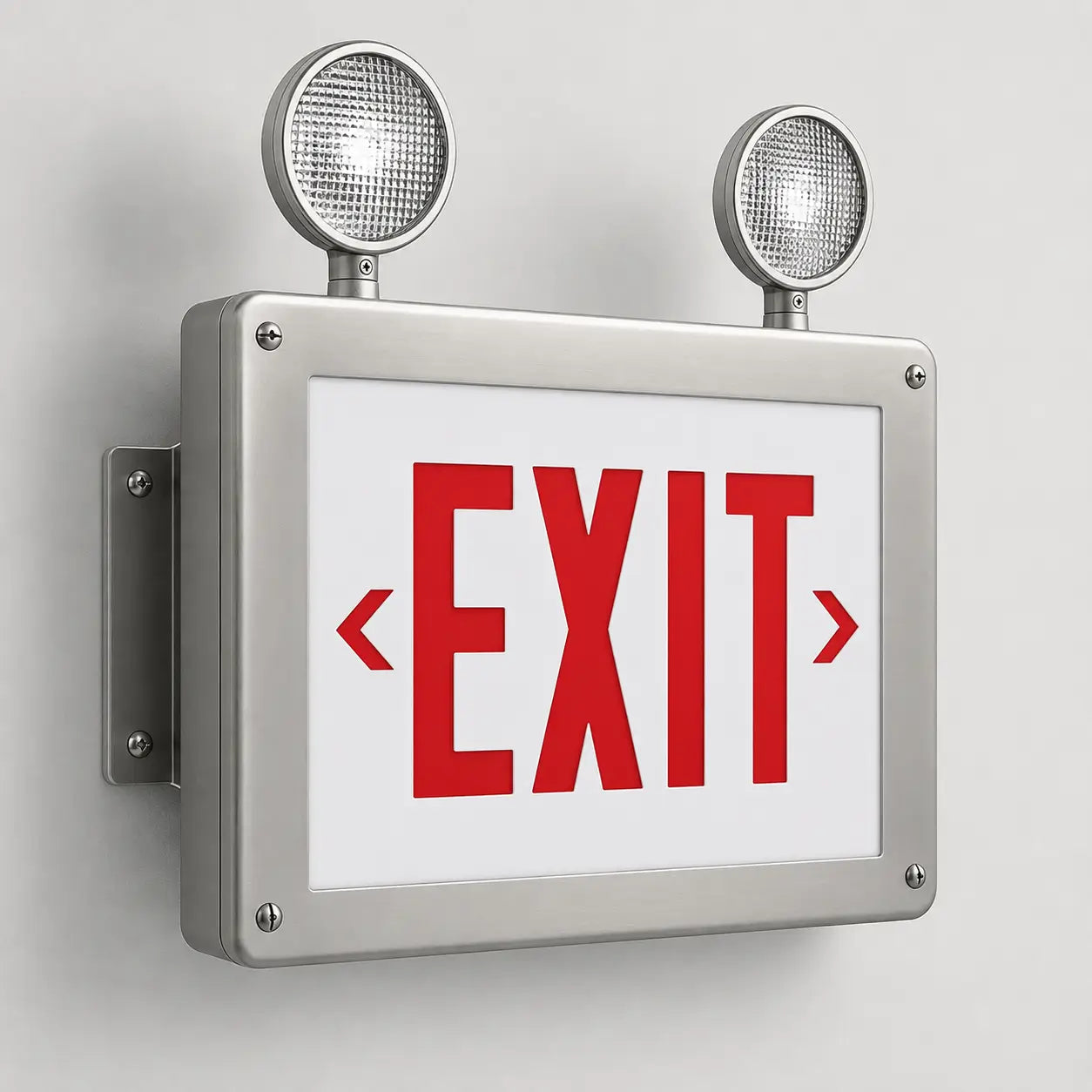

Class 1 Div 2 Exit Sign Combo - Hazardous Environments- Explosion Proof

$1,250.00 $900.00

Availability : In Stock

Product Type : Industrial Exit Signs

Vendor : ESW Supply

SKU : ESW-HZ-CP-ECX

Class 1 Div 2 Explosion Proof Exit Sign With Emergency Lights  - In Stock  Exit Sign Warehouse's Extreme series exit sign combo is the ideal solution for any harsh or hazardous environmentwith its durable, corrosion resistant, NEMA 4X, fiberglass housing and high impact weatherproof emergency lamps. The ESW-CP-ECX is built...

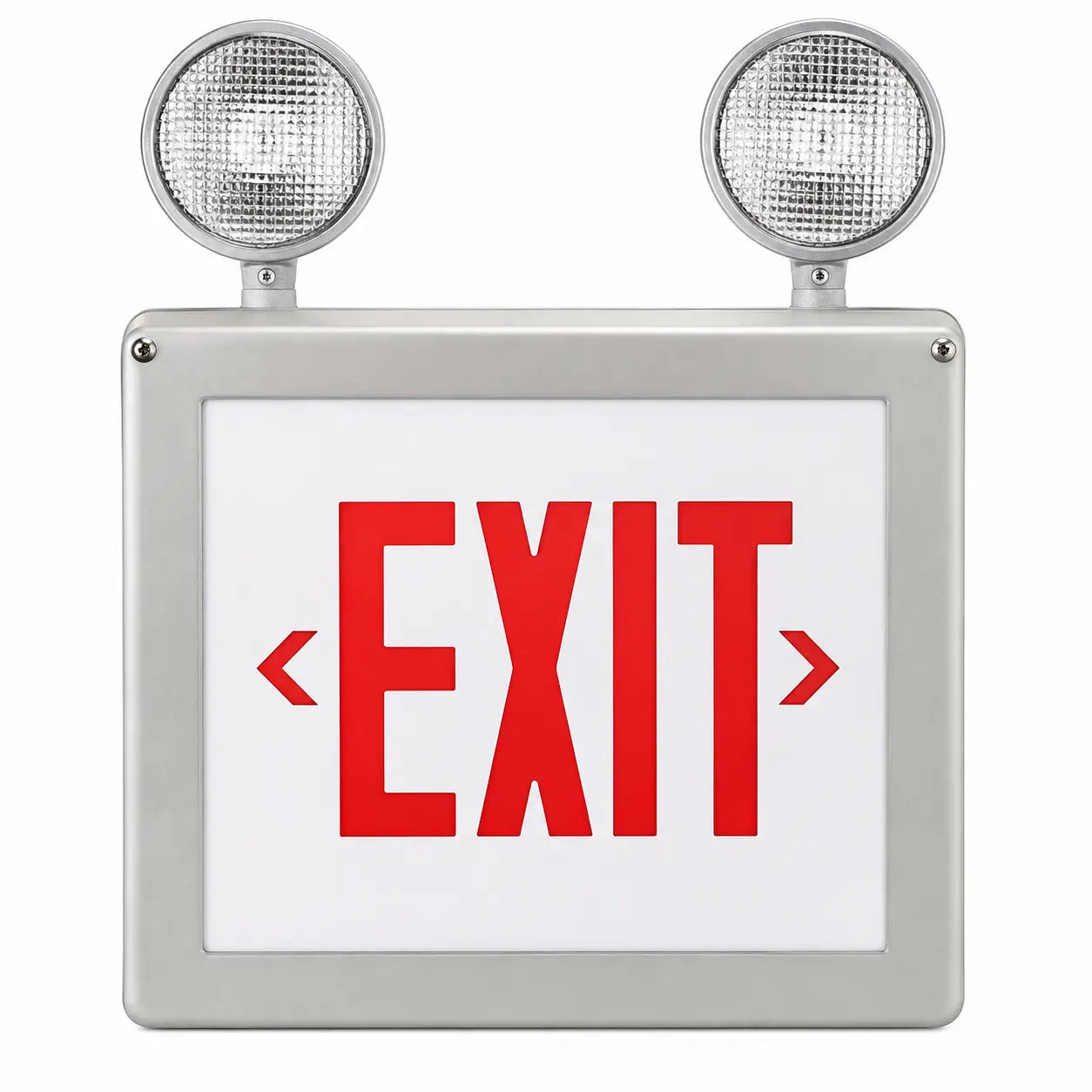

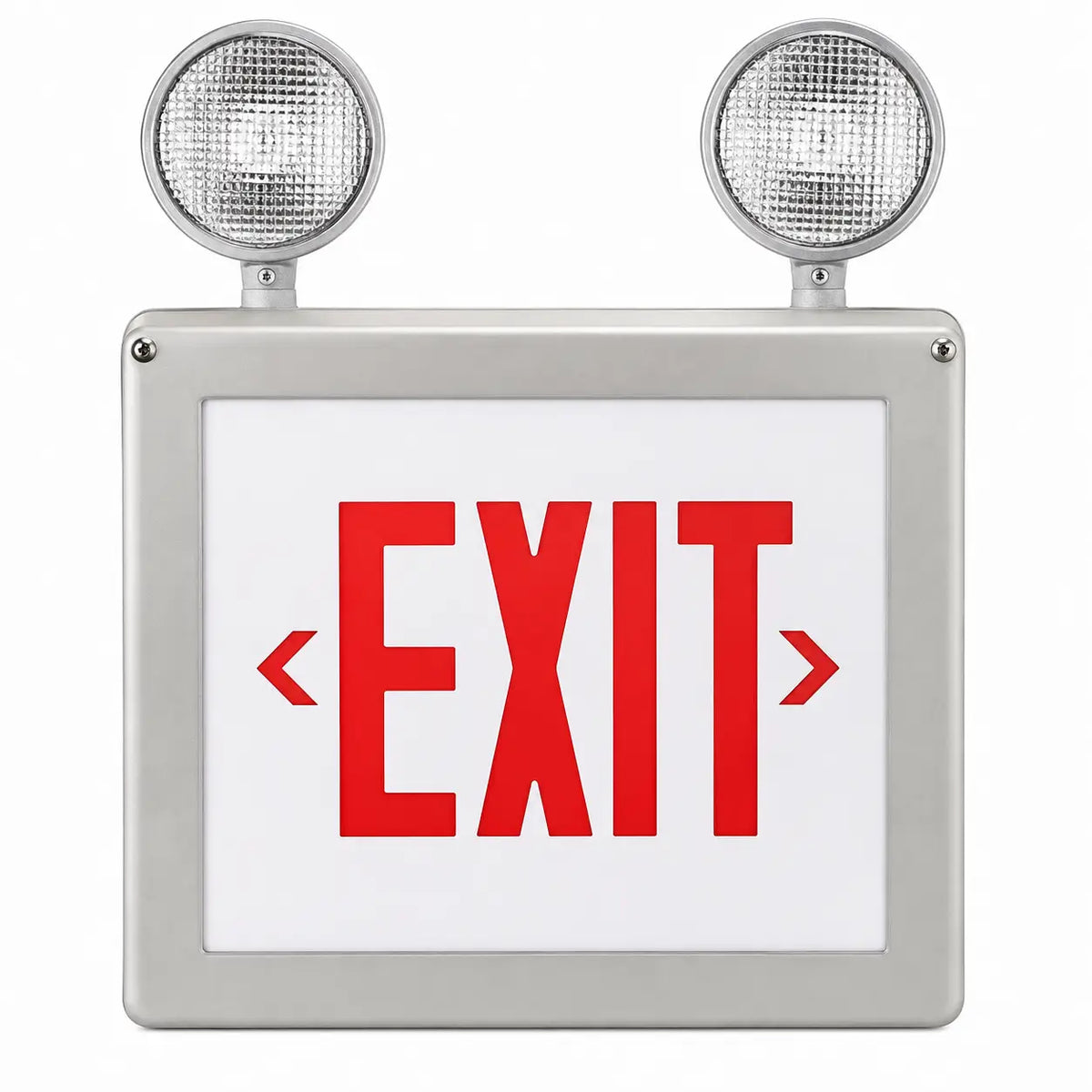

Red LED

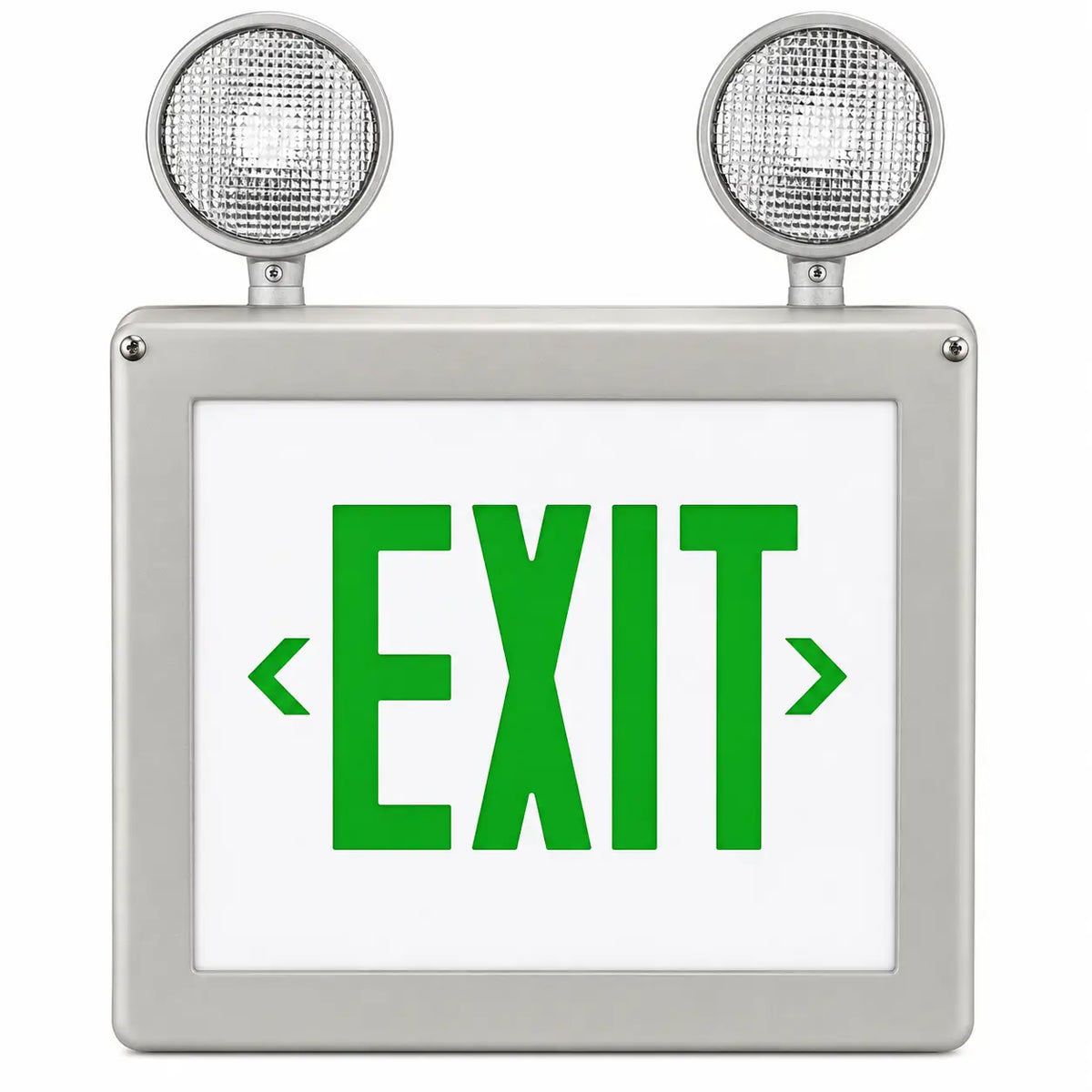

Green LED


Class 1 Div 2 Explosion Proof Exit Sign With Emergency Lights  - In Stock

Exit Sign Warehouse's Extreme series exit sign combo is the ideal solution for any harsh or hazardous environmentwith its durable, corrosion resistant, NEMA 4X, fiberglass housing and high impact weatherproof emergency lamps. The ESW-CP-ECX is built to withstand hazardous environments such as petrochemical, oil & gas production and waste water treatment plants.

Features

  • Standard unit is 6 Volt 36 Watt Unit. Other voltage and wattages are available upon request
  • Hazardous Location exit/combo rated for: Class I Division 2, Groups A, B, C & D – T2B area classification
  • Suitable for Class 1, Zone 2, IIA, IIB & IIC. T1 & T2 area classifications
  • Durable fiberglass NEMA 4X rated housing with integrated stainless steel mounting feet
  • Fully adjustable, weatherproof, Par 36 style high impact thermoplastic lamps standard with 9 watt tungsten lamp
  • Stainless Steel breather to provide safe and effective unit ventilation
  • CSA listed to 90 minutes for emergency with a 24hour re-charge time
  • Fully illuminated 6” characters with 3⁄4” stroke
  • Illuminated by high-intensity, long life LEDs
  • Low energy consumption with a maximum of only 2 watts
  • Optional Guardian Self-Test/Self-Diagnostics (G2) available
  • Chevron-style, universal arrows
  • 120/277 volt, 60HZ input standard
  • Standard finish: Gray housing, white face
  • Available in a single face exit configuration only
  • Made in U.S.A.

    Construction
    The Champion Exit/Combo Extreme is constructed from durable, corrosion resistant fiberglass. The NEMA 4X rated housing is fully gasketed for harsh and hazardous locations. The front access panel/door is hinged for trouble-free installation and maintenance. The Champion ECX features a stainless steel breather valve that provides efficient ventilation. The CP-ECX has fully adjustable top mounted, weatherproof Par 36 style emergency lamps. The Exit face utilizes a top grade clear with field removable chevrons.
    Illumination - Exit Sign
    Stencil letters are 6” high with 3/4” stroke and are illuminated with high-intensity, long-life LEDs exceeding UL 924 requirements for brightness and uniformity. LEDs provide excellent illumination while maximizing energy efficiency, using a maximum of only 2 watts. LEDs are a maintenance-free solution, providing up to 100,000 hours of use without failure.

    Emergency Lamps
    Standard fully weatherproof top mounted lamp assembly contains two fully adjustable, high intensity Par 36 lamps – standard with a 9W tungsten lamp. Heads are constructed of high impact thermoplastic in a gray finish. The emergency head features a locking collar in order to securely hold the lens in place and facilitates quick re-lamping.
    Electrical Input
    Dual-voltage input 120 or 277VAC @ 60Hz.

    Sealed Lead Acid Battery – SLA
    Sealed lead acid batteries are maintenance-free with a life expectancy of 5 years. Lead Acid batteries perform optimally in temperatures ranging from 15-40°C.
    Sealed Nickel Cadmium Battery - niCad
    Sealed nickel cadmium batteries are maintenance-free with a life expectancy of 15 years. Nickel cadmium batteries offer high discharge rates and continue to perform in a vast temperature range from 0-40°C.

    Emergency
    The Champion ECX will operate for a minimum of 90 minutes during a loss of power with a 24 hour maximum recharge time for the battery.

    Brownout Circuit
    The brownout circuit monitors the flow of AC current to the unit and triggers the emergency lighting system once a set reduction of AC power occurs. This drop in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.

    Low Voltage Disconnect
    When the battery’s terminal voltage falls below predetermined levels, the low- voltage circuit disconnects the emergency lighting load. The disconnect remains in effect until normal power is restored, preventing deep battery discharge and improving the life of the battery. The disconnect will also automatically reconnect the load circuit once the battery voltage returns to a normal voltage after charging.

    Test Button
    Our easily located test button allows for manual verification of proper operation of the transfer circuit and emergency operation.

    Installation
    Internally housed components and battery eliminate the risk of damage during installation. Four stainless steel mounting feet ensure a safe, durable surface wall mount installation.

    Class I Division 2 (standard)
    A location (1) in which volatile flammable liquids or flammable gases are handled, processed, or used, but in which the liquids, vapors or gases will normally be confined within closed containers or closed systems from which they can escape only in case of accidental rupture or breakdown of such containers or system, or in case of abnormal operation of equipments; or (2) in which ignitable concentrations of gases or vapors are normally prevented by positive mechanical ventilation and which might become hazardous through failure or abnormal operation of the ventilation equipments; or (3) that is adjacent to a Class I Division 1 location and to which ignitable concentration of gases or vapors might occasionally be communicated unless such communication is prevented by adequate positive pressure ventilation from a source of clean air and effective safeguards against ventilation failure are provided.

    Class I and Class II Groups
    Groups A, B, C & D applications are atmospheres typically containing acetylene, hydrogen, manufactured gas, diethyl ether, ethylene, cyclopropane, gasoline, hexane, butane, naphtha, propane, acetone, toluene, and isoprene.

    Made in the U.S.A.
    Made in the U.S.A. and is in full compliance with the American Recovery and Reinvestment Act of 2009 (ARRA) requirements and Buy American provisions.

    Options - Time Delay (Option: TA or TB)
    The purpose of this feature is to allow additional time for “normally on” fixtures to return to full brightness prior to extinguishing the supplemental light from the emergency fixtures. The time delay option is available in a 5, 10, or 20 minute delay (specify when ordering, i.e. TA5)

    Guardian self-test/self-Diagnostics (Option: G2)
    The Guardian circuit continuously monitors the operating condition of the AC power, battery supply voltage, emergency lamp continuity and charging circuit. The purpose of this option is to provide visual signaling in response to a fault at the EXIT sign battery and/or battery charger. If a failure is detected, visual status will occur immediately via the CHARGER LED and/or the BATTERY FAULT LED. The LEDs will stay illuminated until the fault is corrected. The Guardian circuit also monitors the transfer circuit as well as performing automatic code compliant testing. The Guardian circuit will perform a 5 minute discharge and self-test monthy. Every 6 months, two 90 minute discharge tests are performed 24 hours apart. This tests both the battery capacity and recharge capability. The status of the Champion Exit Combo is communicated clearly with a single, multi-color LED indicator.

    Tamper Resistant Hardware (Option:TRH)
    Tamper resistant hardware adds an additional layer of protection to the unit, preventing unwanted access to the interior of the unit or removal of the face plates.

    Conformance to Codes and Standards
    The Champion Exit Extreme is CSA listed and meets or exceeds the following: UL924, CSA C860, NEC requirements, and NFPA 101.

    Additional Options

    Additional options including Voltage and Wattage available upon request.
