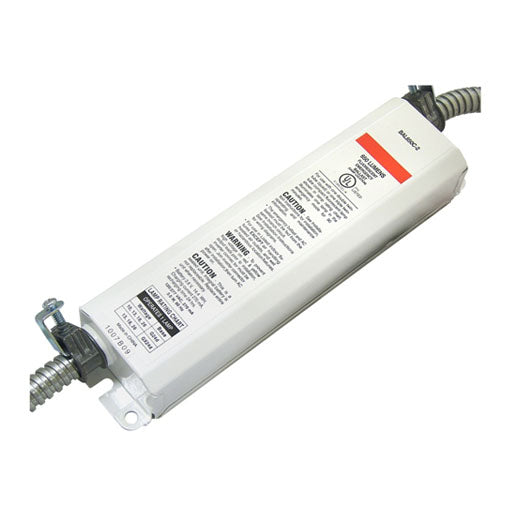

BAL650 Emergency Ballast 650 Lumens - Fluorescent

$56.00

Availability : In Stock

Product Type : Emergency Ballast

Vendor : Emergency Ballast

SKU : ESW-BAL650

Illumination Works with or without an AC ballast to convert new or exist- ing fluorescent fixtures in to unobtrusive emergency lighting. Operates one lamp in the emergency mode for a minimum of 90-minutes. Provides a maximum initial lumen output of 650 lumens. Electrical Dual 120/277 voltage. Charge rate/power “ON” LED...


Illumination
  • Works with or without an AC ballast to convert new or exist- ing fluorescent fixtures in to unobtrusive emergency lighting.
  • Operates one lamp in the emergency mode for a minimum of 90-minutes.
  • Provides a maximum initial lumen output of 650 lumens.
    Electrical
  • Dual 120/277 voltage.
  • Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
  • Long life, maintenance-free, rechargeable sealed NiCd battery.
  • Internal solid-state transfer switch automatically connects the internal battery to fluorescent lamp for minimum 90-minute emergency illumination.
  • Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
    Mounting
  • Suitable for installation inside, on top or in remote* of the fixture.
  • Can be used in both switched and unswitched fixtures.
  • UL Listed for factory or field installation.
    Housing
  • Durable painted steel construction in white finish.
  • Provided with 2’ flex conduits on both ends.
  • Compact design fits most fluorescent fixtures
    Warranty
    Five year warranty against defects in material and workman- ship (lamps excluded). • Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes. • UL Listed for damp locations (0°C – 50°C).
    Lamp Compatibility
    • Compatible with most one-, two-, three-, and four-lamp electronic standard and dimming AC ballasts. • Operates one 13W-26W, 2-pin compact fluorescent lamps with GX23 and G24D bases. Refer to lamp compatibility chart for a complete list of lamps.
