Emergency Led Driver for Led Lamp with Internal or External Driver -2 Flex - 20 Watts

• Provides 180-320VDC (equals to 120-230VAC) the load during emergency mode operation.
• For use with switched or unswitched fixtures.
• Can be used with LED lamp loads of up to 20W and provide 100% lumen output.
• Universal 120-277V, 50/60 Hz input.
• Charge/Power "ON" LED indicator light and push-to-test switch for mandated code compliance testing.
• Long-life, maintenance free, rechargeable NiCad battery.
• Output short/overcurrent protection: Electronic limiting, with normal operation resuming upon removal of fault.
• 90 Minute minimum emergency operating time over full temperature range.
• 24 Hour maximum battery recharge time.
• Durable painted steel construction in red fi nish.

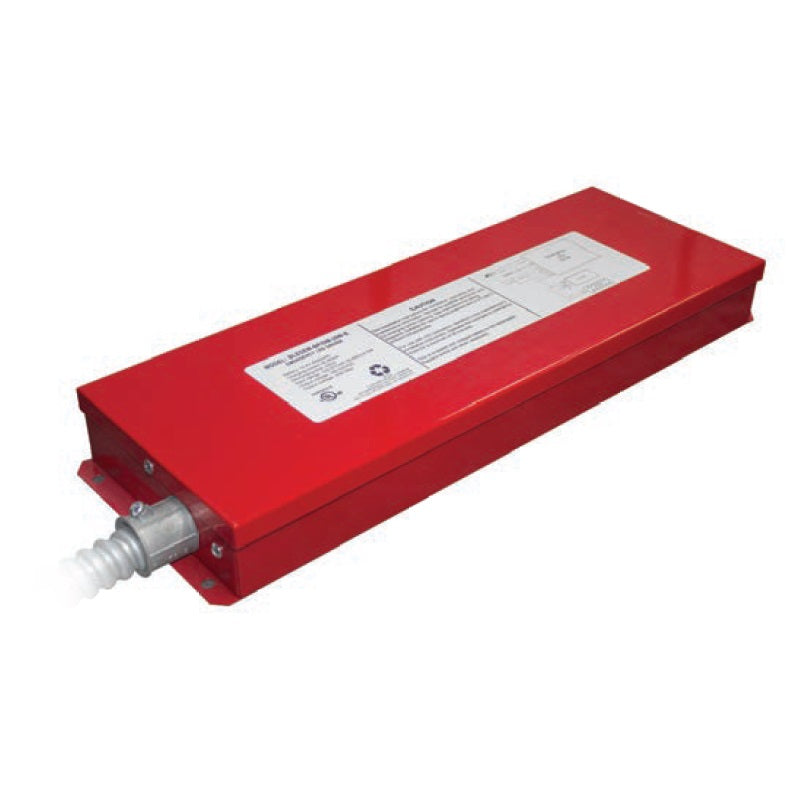

• Provided with 2" flex conduits.



  Specification Sheet Click Here
