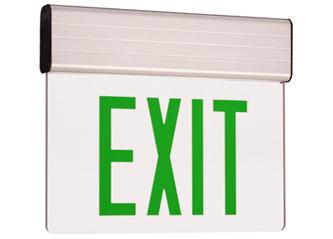

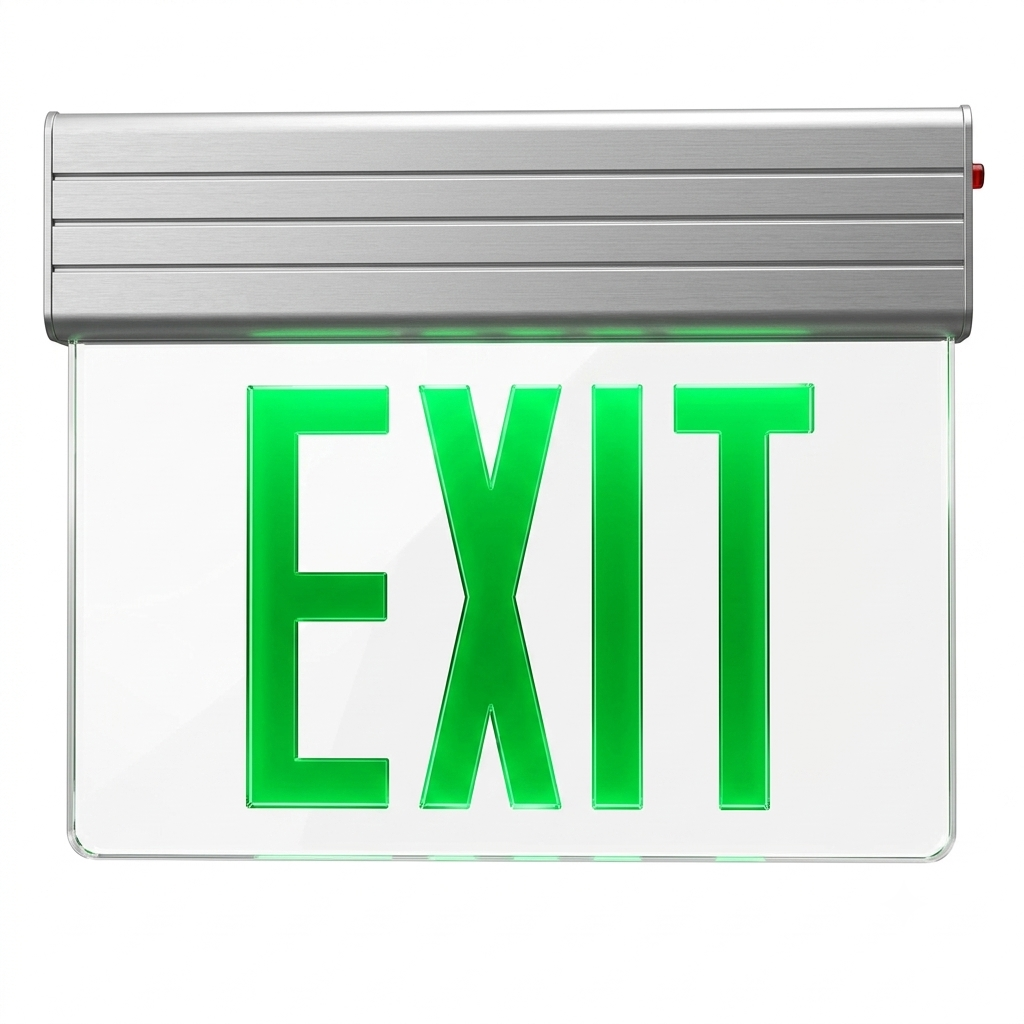

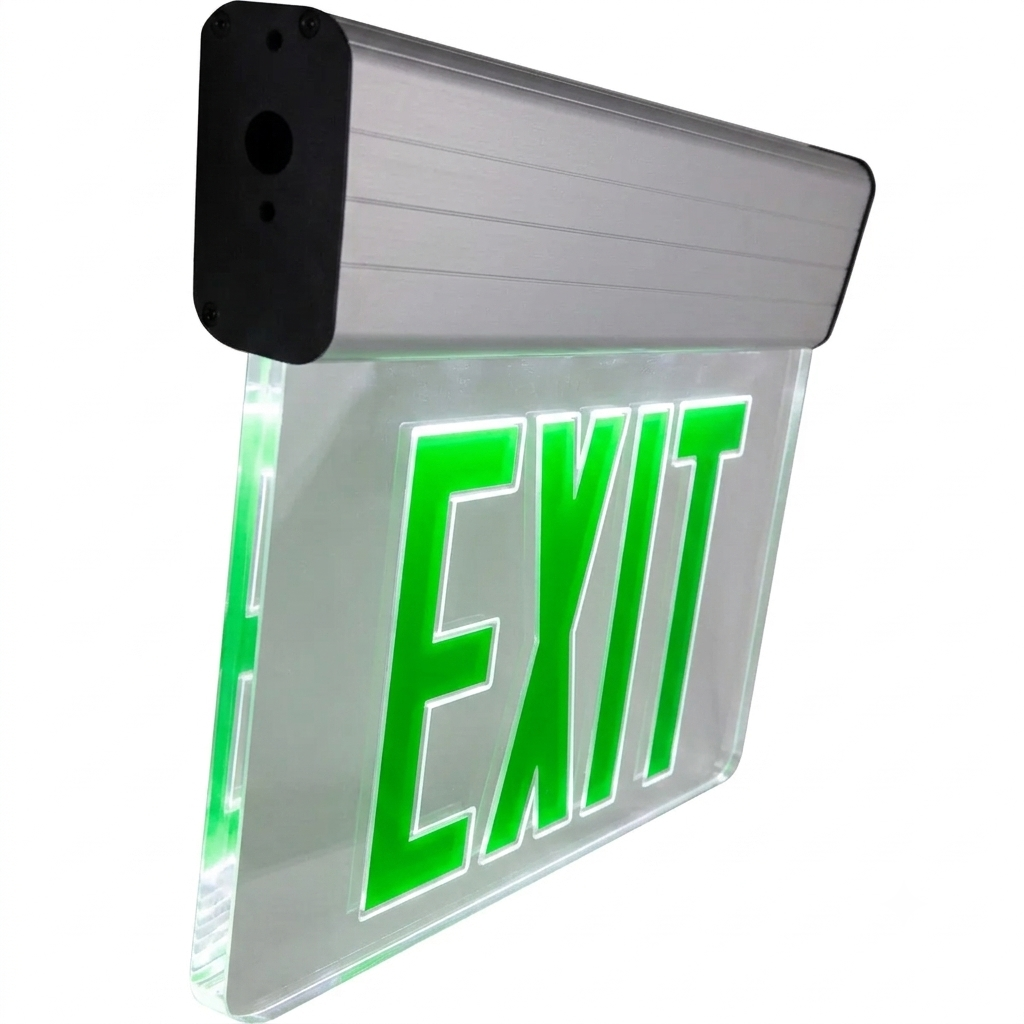

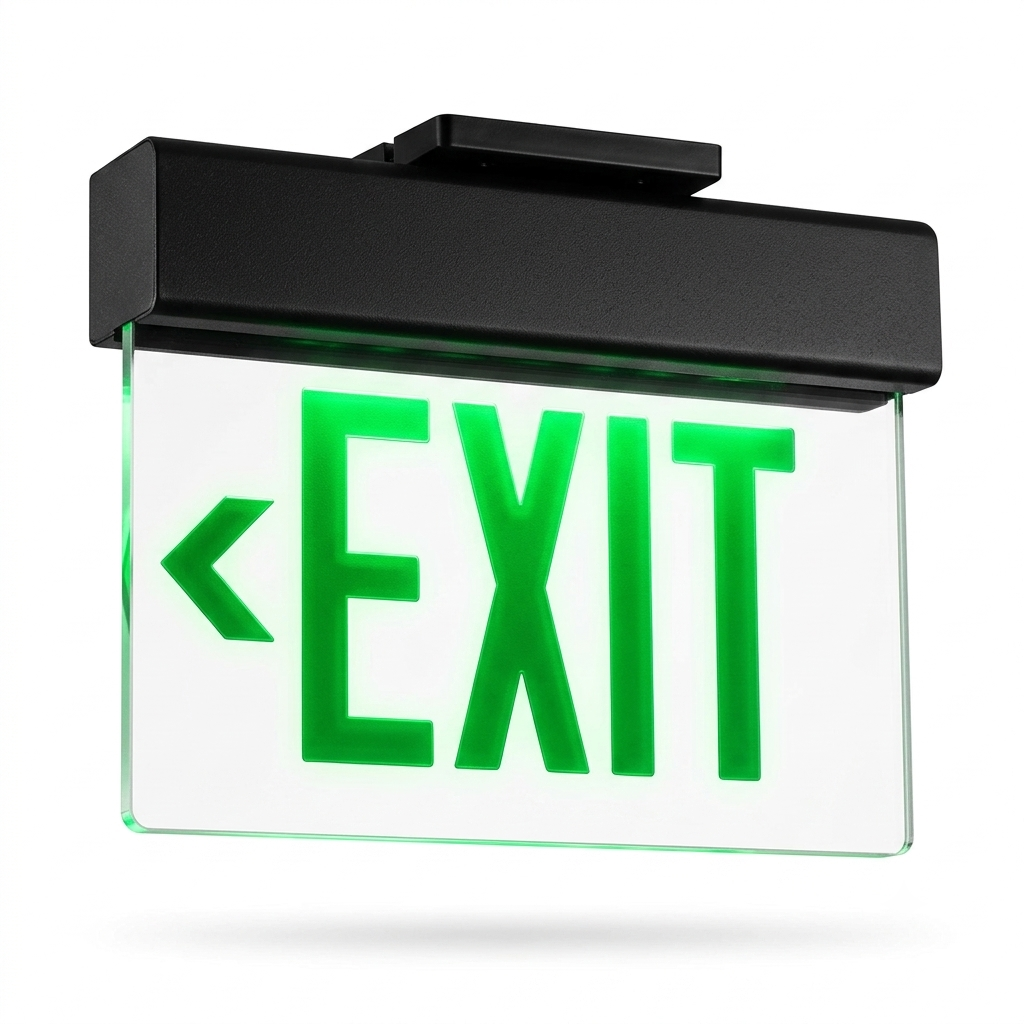

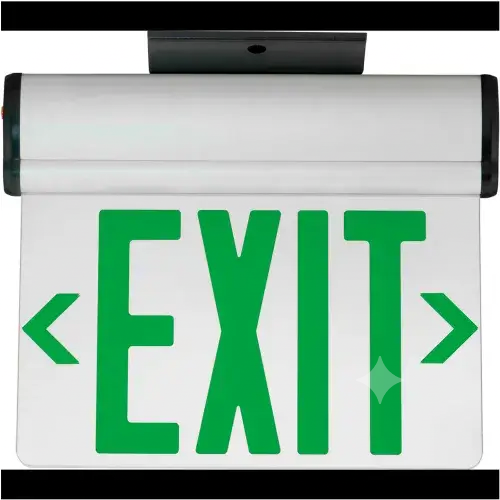

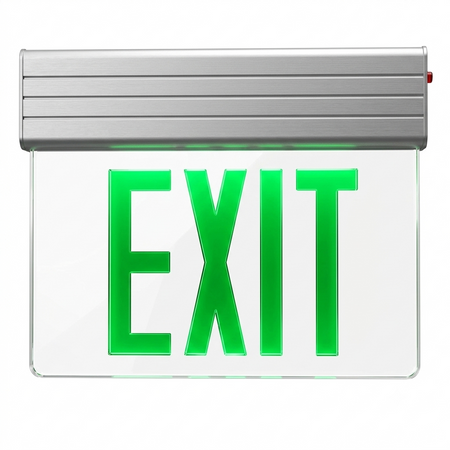

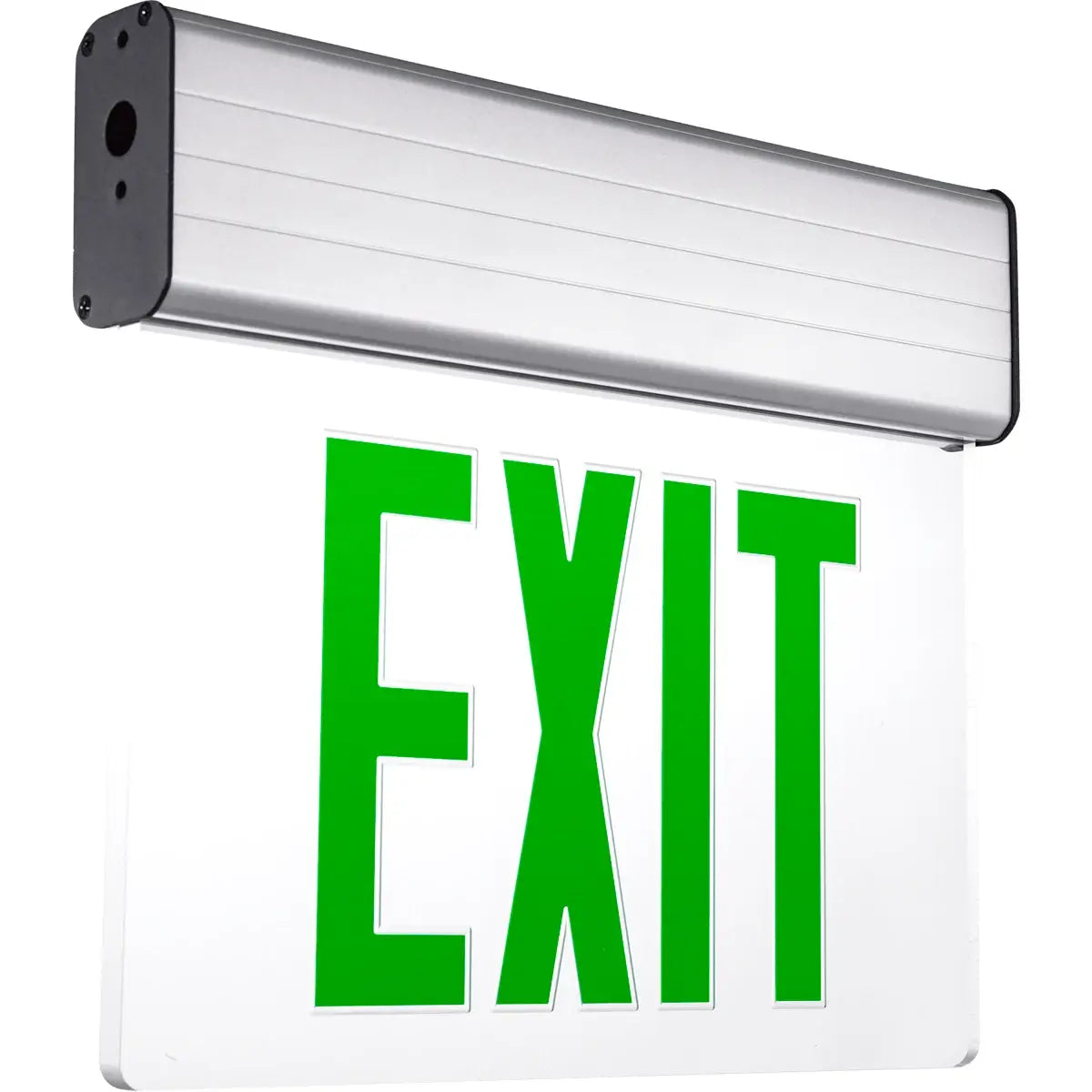

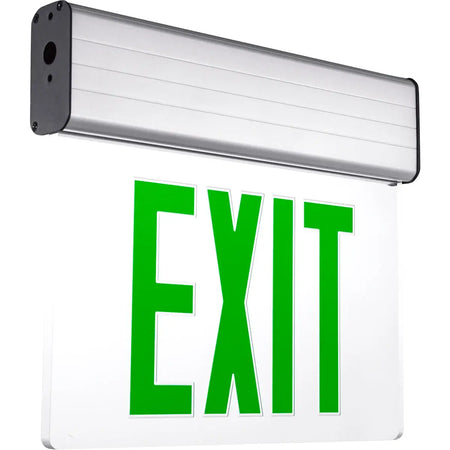

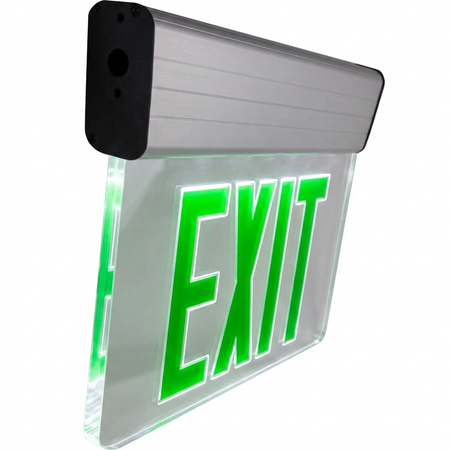

Edge Lit Exit Sign Green LED Two Circuit - UL Listed

$95.00

Availability : In Stock

Product Type : Dual Circuit Exit Signs

Vendor : ESW Supply

SKU : ESW-EL-G-2C

PRODUCT OVERVIEWThe ESW-EL-G2C series has been developed with style, ease of installation and dependability in mind. Utilizing high-output indirect LED technology, the ESW-EL-G provides a surface mounted edge-lit EXIT sign with excellent light distribution. The ESW-EL-G series can be wall or surface mounted. End mount configurations are also available. The...
Aluminum (Standard)
Black (Add $15)
White (Add $15)


PRODUCT OVERVIEW
The ESW-EL-G2C series has been developed with style, ease of installation and dependability in mind. Utilizing high-output indirect LED technology, the ESW-EL-G provides a surface mounted edge-lit EXIT sign with excellent light distribution. The ESW-EL-G series can be wall or surface mounted. End mount configurations are also available. The ESW-EL-G series can be configured for AC only and Self-Powered operation versions. The ESW-EL-G series features universal field adjustable chevrons.

INTERNAL SPECIFICATIONS
AC ONLY: comes standard configured with high-output LED technology, 120/277VAC input.
SELF-POWERED: comes standard configured with high-output LED
technology, 120/277VAC input. Nickel-cadmium batteries provide a
minimum 90 minutes of emergency duration. Optional 120 minute
duration battery is available. Solid state charger & transfer.

Dual Circuit Model

EXTERNAL SPECIFICATIONS
The ESW-EL-G Dual Circuit  series housing backbox is constructed from durable 20 gauge steel. The acrylic face plate is available in both single face or double face versions, with a clear, mirrored. Field adjustable chevrons are standard. External LED monitor light and test switch are standard on self-powered versions.

INSTALLATION
The ESW-EL-G series is suitable for surface ceiling or wall mounting. Suitable for indoor installations.

EDGE-LIT DESIGN
The ESW-EL-G series of elegantly designed edge-lit exit signs feature a clean and contemporary look. The design brings style and flexibility to your next prestigious exit sign application. The indirect LED illumination evenly lights the acrylic face with crisp, even light. The ultra thin face plate virtually disappears once installed, yet the EXIT lettering boldly distinguishes the path of egress. The wide variety of finishes and mounting configurations available will ensure that the ESW-EL-G series can be easily matched to your decor.

ELECTRICAL SPECIFICATIONS
The ESW-EL-G series is configured with high-output LED lamps. Standard with 120/277VAC input. All LED versions consume only 1.1W nominal power. Optional emergency illumination is provided by the LED light source at the following wattages:
6VDC - 0.5 Watts
12VDC - 1.5 Watts
24VDC - 3.5 Watts

MECHANICAL SPECIFICATIONS
The ESW-EL-G series housing is constructed of sturdy 20 gauge steel. Universal mounting pattern and key hole slots are stamped into the housing providing various mounting options Ceiling recessed versions are supplied standard with removable steel T-Bar ceiling tile mounting brackets. All trim plates are supplied standard with an attractive and durable white, baked powder coat finish. Other colors are available, including custom color matching, please specify. Face plates for the ESW-EL-G series are constructed of clear, solid acrylic. Field removable directional chevron arrows are standard. Recessed version face plates are held securely in place with two (2) torsion spring clips that allows the face plate to accommodate uneven or angled ceilings and walls. This design leaves no visible screws, nuts or fasteners.

DIMENSIONS
13" Length 10.75" Height 1.75" Width
