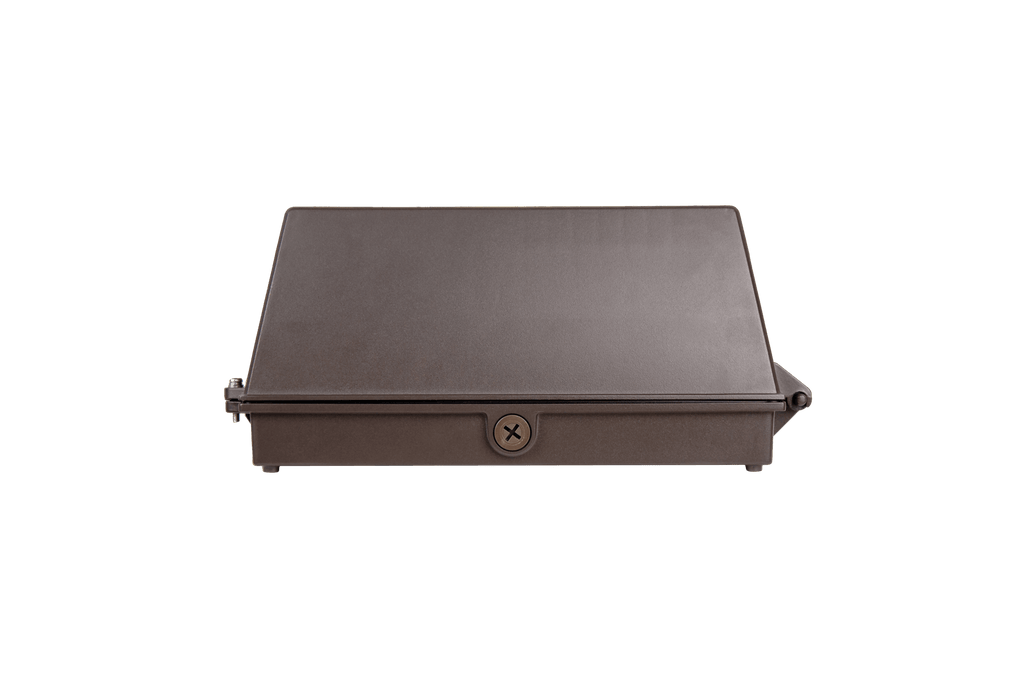

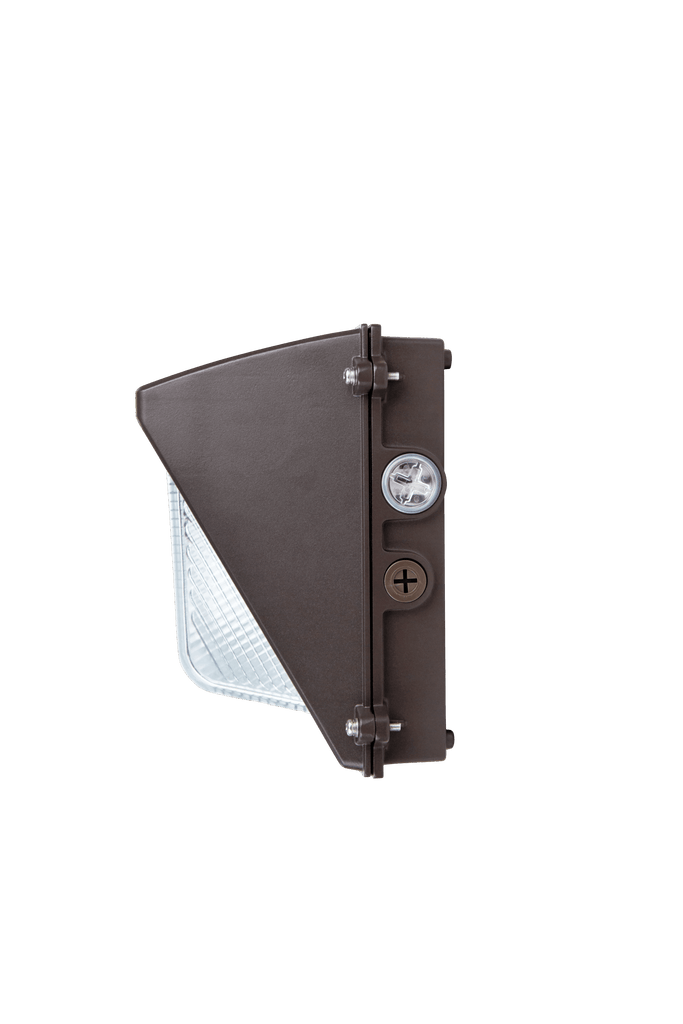

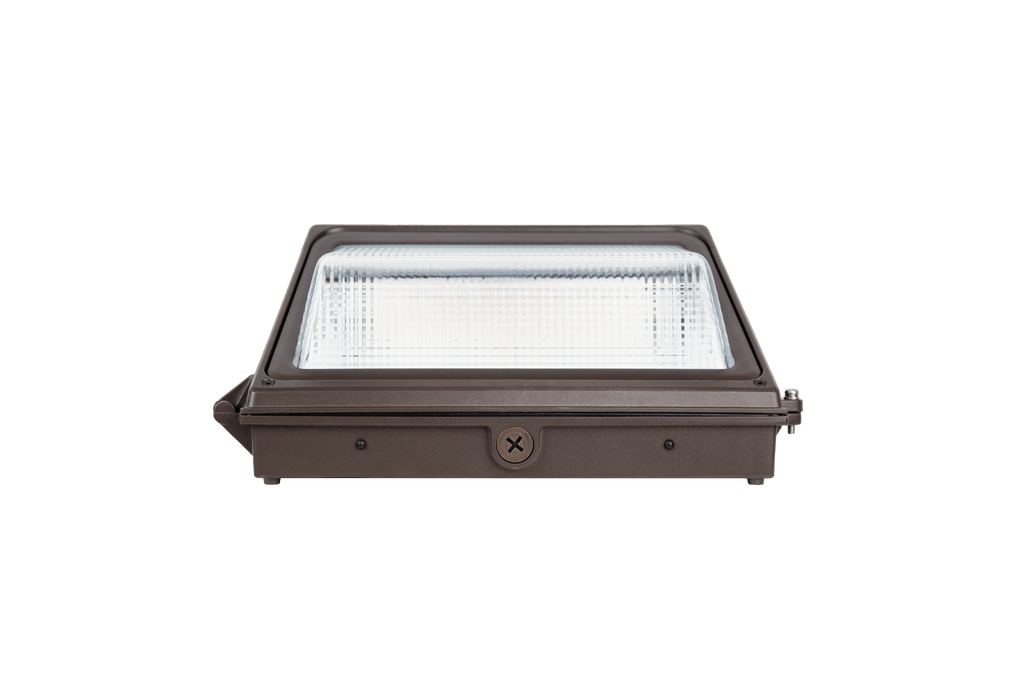

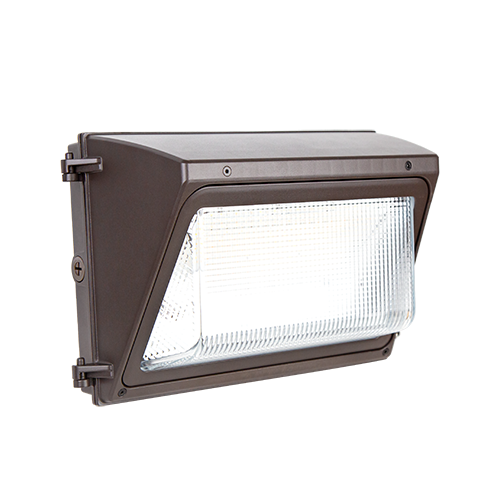

LED Traditional Wall Pack – Sensor Ready, Lumen & Kelvin Field Selectable

The LED Traditional Wall Pack – Sensor Ready from Exit Sign Warehouse is a durable and energy-efficient outdoor lighting solution designed for commercial, industrial, and building perimeter applications. This high-performance fixture features field-selectable lumen output and color temperature, allowing installers to easily adjust lighting levels and color tones to meet specific project requirements.

Constructed with a rugged bronze die-cast aluminum housing and prismatic glass lens, this wall pack provides reliable illumination in harsh environments. The fixture includes a switchable integrated photocell and is sensor-ready, allowing optional occupancy sensors for additional energy savings and smart lighting control.

With long-life LEDs delivering up to 16,817 lumens, this wall pack offers excellent performance, reduced maintenance costs, and long operational life.

Optional Back Battery Back up

Key Features

• Field Selectable Color Temperature – Choose between 3000K, 4000K, or 5000K
• Adjustable Lumen Output – Up to 16,817 lumens depending on model
• Sensor Ready Design – Compatible with screw-in occupancy sensors (sold separately)
• Integrated Photocell – Built-in photocell with on/off switch
• Durable Construction – Die-cast aluminum housing with bronze powder-coat finish
• Prismatic Glass Lens – Provides efficient light distribution
• 0-10V Dimming Drivers – Standard dimming capability
• Universal Voltage – 120–277VAC input
• Long LED Lifespan – Up to 167,000 hours (L70)
• High Efficiency – Excellent lumen output with low energy consumption

Technical Specifications

• Voltage: 120–277V AC
• Color Temperature: 3000K / 4000K / 5000K (Selectable)
• Max Lumens: Up to 16,817 lumens
• Dimming: 0-10V dimming standard
• Power Factor: >0.90
• THD: <20%
• CRI: >80
• Operating Temperature: -40°F to 122°F
• Lens: Prismatic Glass
• Housing: Die-Cast Aluminum (Bronze Finish)

Specification Sheet Click Here
