FULL-CUTOFF LED WALL PACK - 50 Watt

$140.00

Availability : In Stock

Product Type :

Vendor : ESW Supply

SKU : ESW-WPFC-5L-4K

LED FULL-CUTOFF WALL PACK - 50 Watt ▪ Available in 4000k (neutral white) and 5000k (cool white) color temperatures. ▪ Long-life LEDs provide at least 70% of initial lumen output (L70) for > 123,000 hours of operation, and at least 90% of initial       lumen output (L90) for >...
4000K
5000K

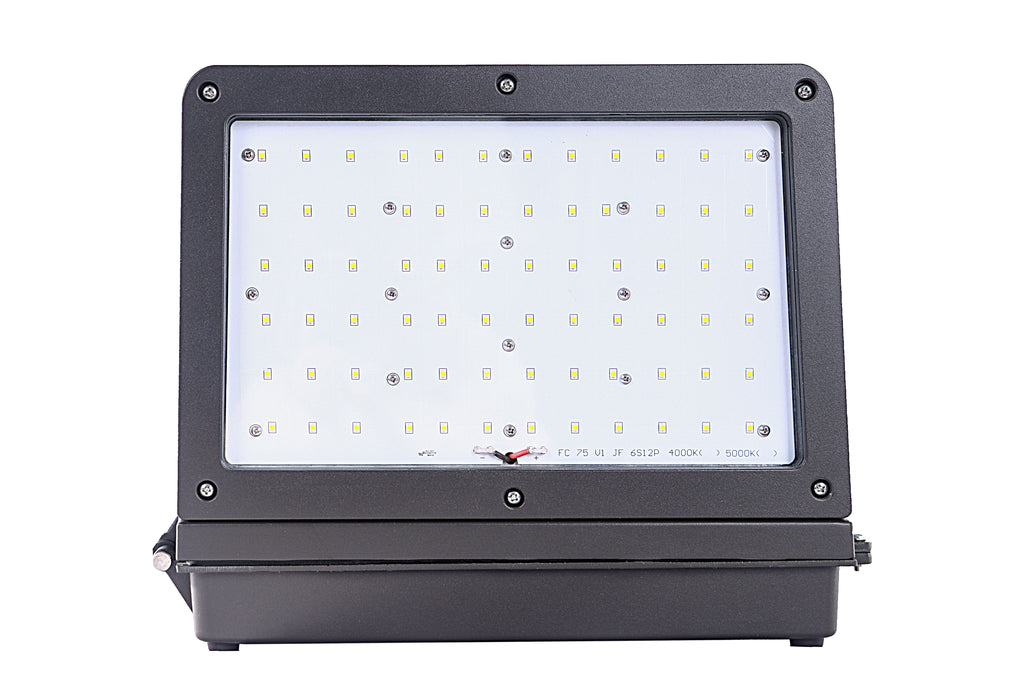

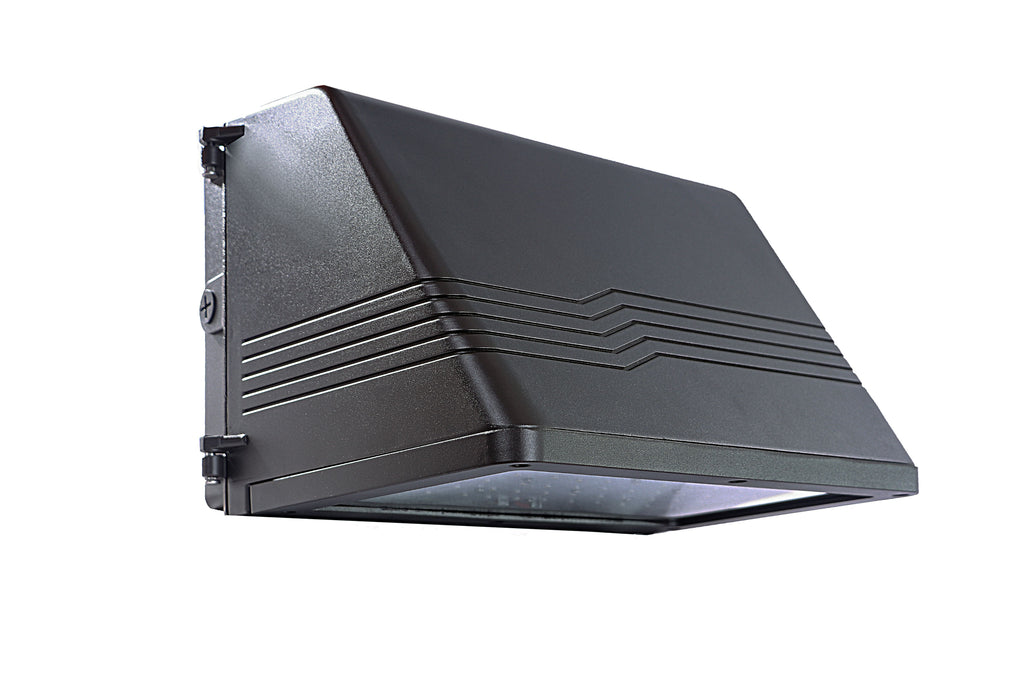

LED FULL-CUTOFF WALL PACK - 50 Watt

Available in 4000k (neutral white) and 5000k (cool white) color temperatures.
Long-life LEDs provide at least 70% of initial lumen output (L70) for > 123,000 hours of operation, and at least 90% of initial
  lumen output (L90) for > 36,000 hours of operation.*
LED chromaticity based on < 5-step ANSI quadrangles.
LED color maintenance < 0.002 chromaticity shift (Δu’v’) over the initial 6,000 of operation.
Provides a range of 5,478 to 9,053 nominal lumens and 121 to 129 nominal lumens per watt (lm/W).
0-10vdc dimming drivers, which provide 10% continuous dimming are standard.
Universal 120-277 AC voltage (50-60Hz) is standard.
Power factor > 0.90.
Total harmonic distortion < 20%.
Color rendering index (Ra) > 70. Red color rendering > -22.
Cast aluminum housing with dark bronze, powder coat finish.
Glass lens.
Three ½” NPT threaded openings.
Easy installation in new construction or retrofit applications.
cULus listed for wet locations in ambient temperatures from
- 20°C to 45°C (-4°F to 113°F).
IP65 rated for ingress protection.
DLC 5.1 premium approved.
Complies with FCC Part 15, class B.
Complies with IEEE C.62.41-2002, surge immunity protection (2kV).
Complies with RoHS (Restriction on Hazardous Substances) requirements.
5-year warranty of all electronics and housing.
* Contact factory for other color temperatures and lumen packages.
** L70 & L90 hours are IES TM-21-11 calculated hours.
