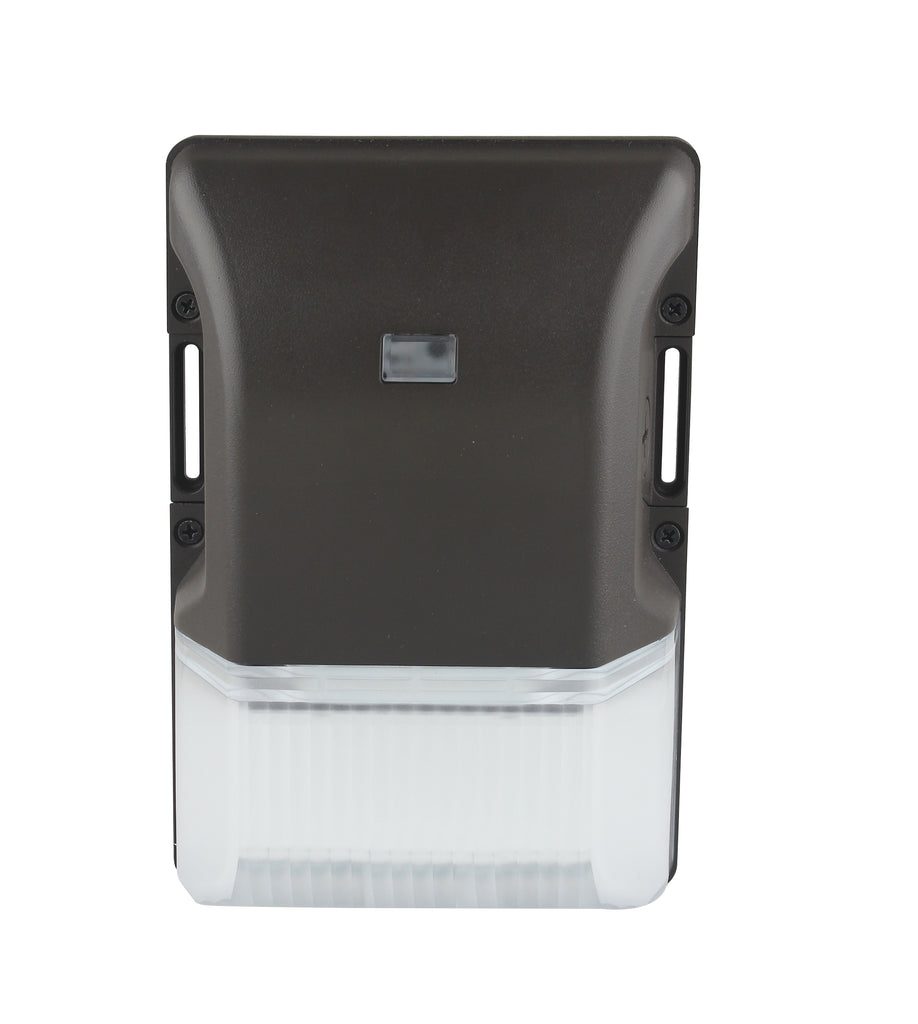

LED ECONOMY WALL PACK - 3L, - 3K, 4K & 5K

$58.00

Availability : In Stock

Product Type : Led Wall Pack

Vendor : ESW Supply

SKU : ESW-WPE-3L

LED WALL PACK - 3000L  ▪ Available in 3000k, (warm white),4000k (neutral white), and 5000k (cool white) color temperatures. ▪ Long-life LEDs provide at least 70% of initial lumen output (L70) for > 174,000 hours of operation, and at least 90% of initial lumen output (L90) for > 51,000 hours...
3K
4K
5K


LED WALL PACK - 3000L

Available in 3000k, (warm white),4000k (neutral white), and 5000k (cool white) color temperatures.
Long-life LEDs provide at least 70% of initial lumen output (L70) for
> 174,000 hours of operation, and at least 90% of initial lumen output (L90) for > 51,000 hours of operation.
LED chromaticity based on < 6-step ANSI quadrangles.
LED color maintenance < 0.002 chromaticity shift ((Δu’v’) over the initial 6,000 of operation.
Provides a range of 2,614 to 2,794 nominal lumens and 134 to 144 nominal lumens per watt (lm/W).
0-10vdc dimming drivers, which provide 10% continuous dimming are standard.
Universal 120-277 AC voltage (50-60Hz) is standard.
Power factor > 0.90.
Total harmonic distortion < 20%.
Color rendering index (Ra) > 80. Red color rendering > -8.
Cast aluminum housing with dark bronze, powder coat finish.
Integral photocell is standard.
Diffused polycarbonate lens.
Two ½” NPT threaded openings.
Easy installation in new construction or retrofit applications.
cULus listed for wet locations in ambient temperatures from
- 30°C to 45°C (-22°F to 113°F).
IP65 rated for ingress protection.
DLC 5.1 premium approved.
Complies with FCC Part 15, class B.
Surge immunity protection (2.5kV).
5-year warranty of all electronics and housing.
* Contact factory for other color temperatures and lumen packages.
 L70 & L90 hours are IES TM-21-11 calculated hours.
