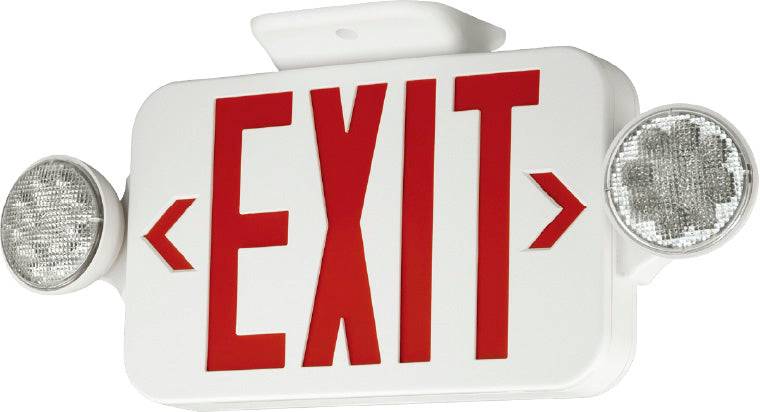

Compact Combination All LED Exit Sign RED With Emergency Lights
led exit sign with egress lights dimensions
Compact Combination All LED Exit Sign RED With Emergency Lights
led exit sign with egress lights dimensions
ESW Supply

Compact Combination LED Exit Sign RED With Emergency Lights - UL Listed - 5 Year Warranty

SKU: ESW-PC-LEDR
(0)
$29.00
-26% $39.00 $29.00
Housing Color
Free ShippingOn Orders above $200
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Compact Combination LED Exit Sign RED With Emergency Lights - UL Listed - 5 Year Warranty

All LED Energy-saving combination LED exit sign and emergency lighting unit in one compact, modern design, flexibility and multi-function capabilities All LED Lamp heads.

  • Injection-molded, high impact, UL 94 V-0 Thermoplastic
  • Snap- together construction speeds installation
  • Universal mounting plate with quick-connect feature
  • Universal J-box pattern
  • Field replacement chevron directional indicator knockouts
  • Universal single face and double face (extra faceplate included)
  • Fully adjustable glare-free lighting heads

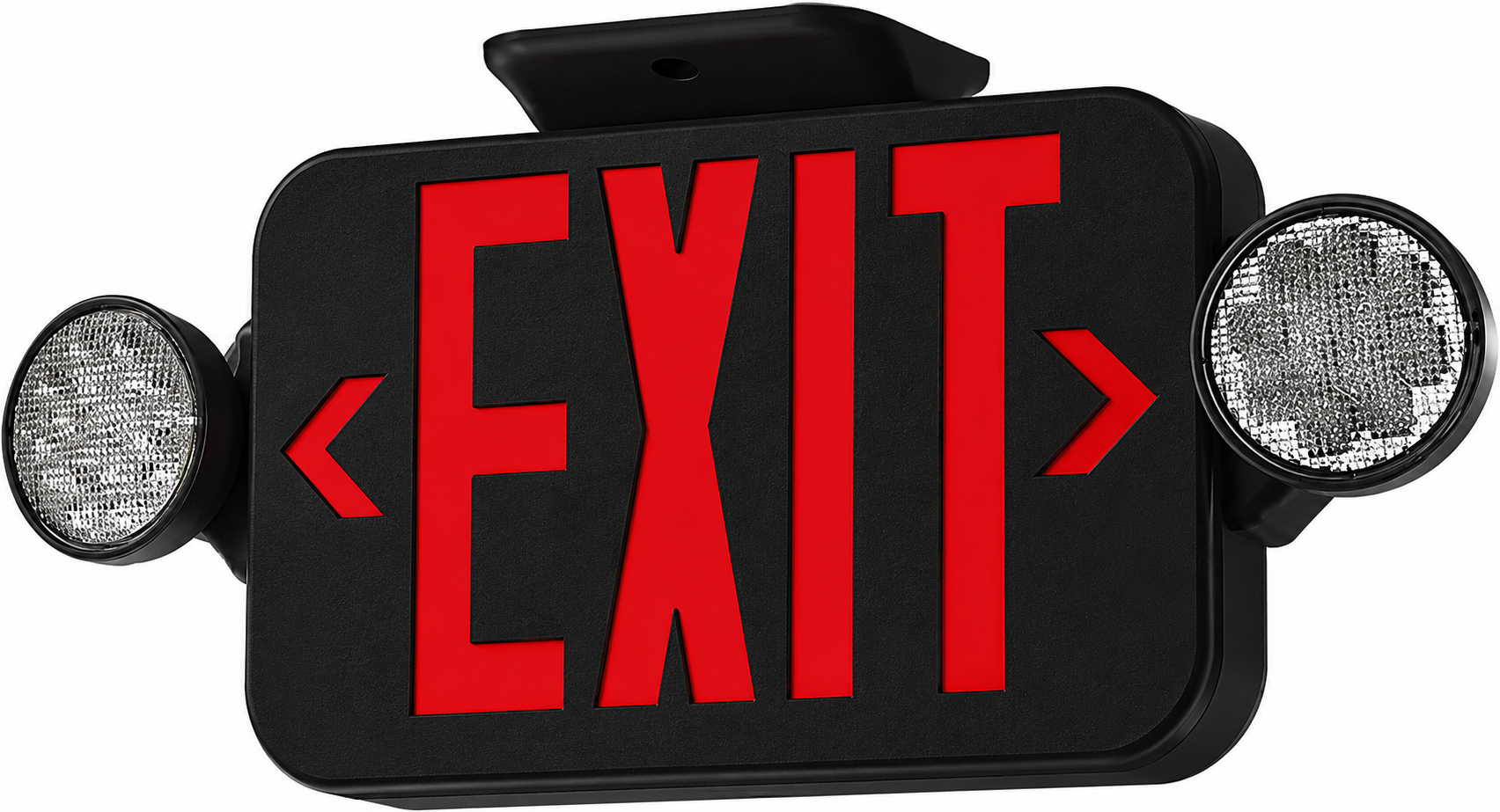

  • White housing is standard, with an optional black housing available
  • LED expected life is more than 10 years
  • Vf (V) for lamp head LED is max. 3.6V, 20mA, max. wattage is 0.072W
  • Dual-voltage input 120V or 277V AC operation
  • Combo unit includes test switch
  • Status indicator lamp
  • Maintenance free sealed 3.6V Ni-Cad rechargeable battery which provides 90 minutes of emergency power
  • UL 924 listed
  • UL indoor damp location listed standard, 68F (20C) to 86F (30C)
  • National Electrical Code (NEC)
  • Five-year warranty
  • CSA Listed
  • DOE & CEC Registered

  • Specification Sheet Click Here

    •
