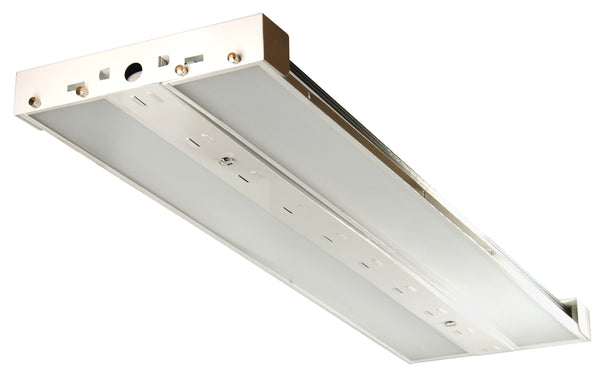

220 WATT LED HIGH BAY 29,370 LUMENS 5000K
Availability : In Stock
Product Type : LED Troffer and Ceiling Panels
Vendor : LED Troffer and Ceiling Panels
SKU : ESW-LEDHB220-5K-MV
220 WATT LED HIGH BAY 28,243 LUMENS 5000K - The LEDHB220 is an LED high bay luminaire designed to illuminate commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing and aluminum heat sink, the LEDHB220 provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.
▪ Long-life LEDs provide 57,000 hours of operation with at least 70% of initial lumen output (L70).**
▪ 28,243 lumen output from 210 watts input (134 lumens per watt) is standard.*
▪ Universal 100-277 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming drivers are available as options. To order, use model suffix DIM10V.
▪ Microwave occupancy sensors are available as options. Order model MWAVEDH-DIM10V separately.
▪ Power factor > 0.99.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Painted steel housing and aluminum heat sink.
▪ Suitable for ambient temperatures from -20°C to 40°C
(-4°F to 104°F).
▪ Easy installation in new construction or retrofit.
* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.
