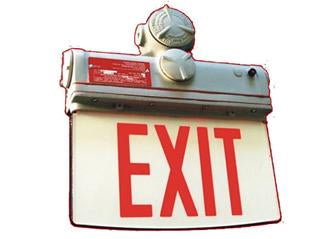

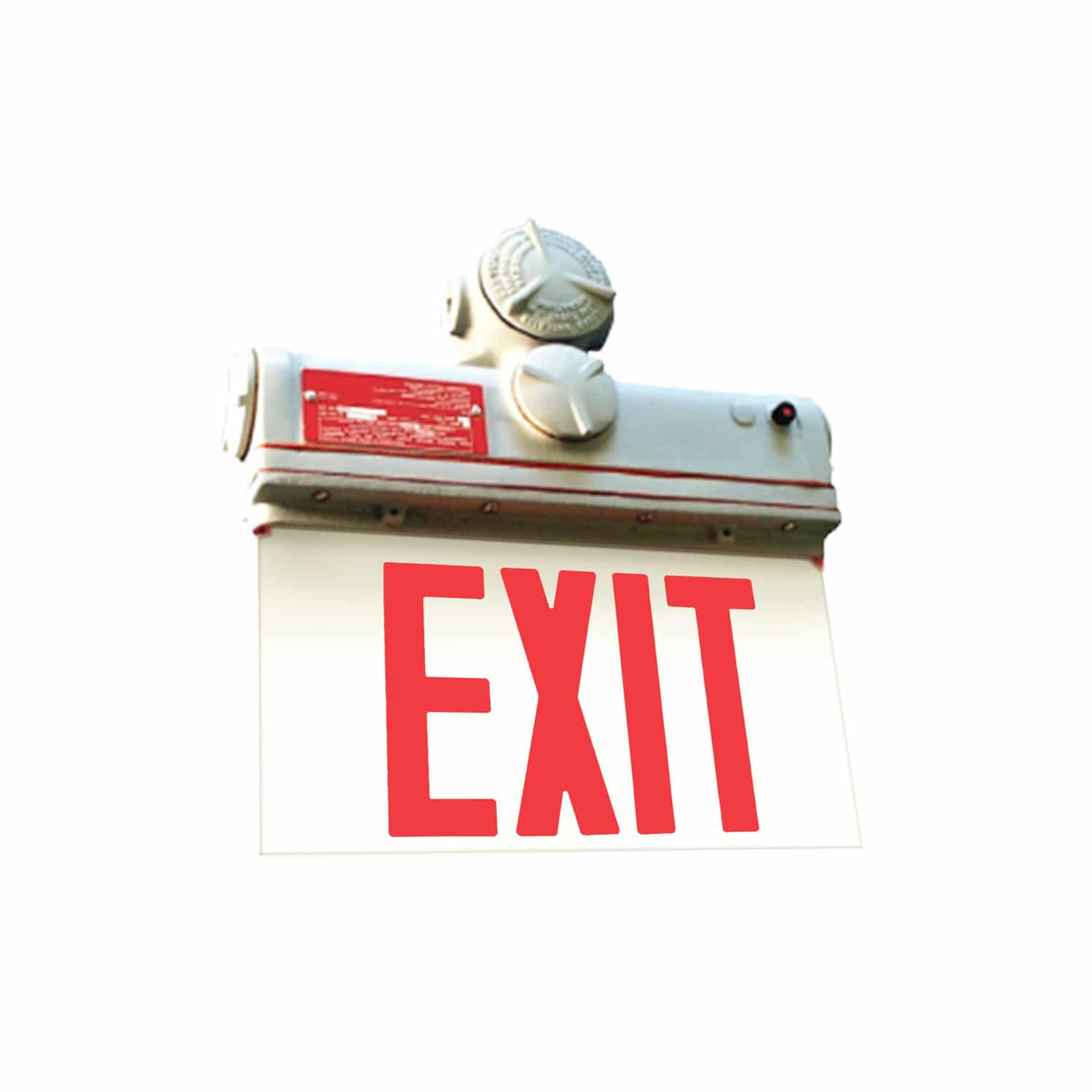

Explosion Proof LED Edgelit Exit Sign - Class 1 Div 2 - Made in USA

$1,175.00

Availability : In Stock

Product Type : Industrial Exit Signs

Vendor : Industrial Exit Signs

SKU : ESW-EXP-EL

PRODUCT OVERVIEWThe ESW-EXP-EL sets new standards in Hazardous Location Exit signs as the first explosion proof self- contained emergency LED edgelit Exit or Custom Graphic sign. The classic Sovereign curved legend panel blends to create a classic "floating" edgelit appearance. Quality construction includes precision cast aluminum housing with a unique,...


PRODUCT OVERVIEW
The ESW-EXP-EL sets new standards in Hazardous Location Exit signs as the first explosion proof self- contained emergency LED edgelit Exit or Custom Graphic sign. The classic Sovereign curved legend panel blends to create a classic "floating" edgelit appearance. Quality construction includes precision cast aluminum housing with a unique, crystal clear laser formed acrylic light guide. The Sovereign utilizes the latest high efficiency light sources to provide vivid pronouncement of the legend with exceptional uniformity.

FEATURES
Maintenance free LED light source with 25+ years life expectancy
Refractive light guide is engineered to optimize LED utilization and
illumination uniformity High intensity LED array provides exceptional energy efficiency with less that 3 watts power consumption. Quality Copper-free cast aluminum housing finished with gray epoxy powder coat 1/2" NPT conduit hubs Available in Wall, Pendant or End Mount configurations Full European pictogram Exit range available to order
Custom Graphic signs available to order, also available with Phantom illumination (legend not visible in the off mode) or Stencil illumination for always visible legends and graphics 3 Year Warranty Electronic control circuit applies full wave, low ripple current to each LED thereby optimizing life and light output. A diagnostic self compensating constant current charger circuit monitors the condition
of the battery pack and indicates via a flashing LED when battery needs replacing Universal 120 or 277 VAC field selectable input. Other voltages are available to order. All versions feature fully integral
electronic components Available in AC only operation (AC) or self contained battery back up (EM)models Self Test / Self Diagnostic circuit with infra-red remote testing available UL listed 3 Hour battery backup runtime with Premium long life high temperature fused nickel cadmium battery pack Circuitry includes - Zero current LVCO, Brownout sensing & Line-Latch

CODE COMPLIANCE MEETS OR EXCEEDS REQUIREMENTS NFPA 101
Class I, Division 1, Groups C & D
Class I, Division 2, Groups A, B, C & D
Class II, Division 1, Groups E, F & G
Class III, Division 1
Class I, Zone 1, Groups IIA, IIB,
Class I Zone 2, Groups IIA, IIB + H2 & IIC
Marine Outside Type
UL 1598A, 844, 924IP65Code Compliance, meets or exceeds
requirements for NFPA 101:

ELECTRONICS
Electronic control circuit applies full wave, low ripple current to each LED thereby optimizing life and light output. A diagnostic self compensating constant current charger circuit monitors the condition of the battery pack and indicates via a flashing LED when battery needs replacing
Universal 120 or 277 VAC field selectable input. Other voltages are available to order. All versions feature fully integral electronic components
Available in AC only operation (AC) or self contained battery back up (EM)models
Self Test / Self Diagnostic circuit with infra-red remote testing available
UL listed 3 Hour battery backup runtime with Premium long life high temperature fused nickel cadmium battery pack
Circuitry includes - Zero current LVCO, Brownout sensing & Line-Latch

Spec Sheet
