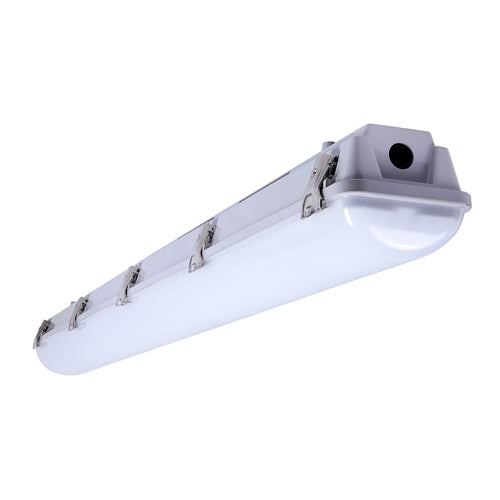

Premium LED Vapor Tight Fixture 4FT - Color Selectable

VT-LED-CS-4 is a surface-mounted LED luminaire, which is designed to prevent the intrusion of moisture and dust. The VT-LED-CS-4 provides general ambient lighting in commercial and industrial settings, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

Field selectable color temperatures include 3500k, 4000k and 5000k.

▪ Long-life LEDs provide 137,000 hours of operation with at least 70% of initial lumen output (L70), and 42,000 hours with at least 90% of initial lumen output (L90).

▪ LED chromaticity based on < 5-step ANSI quadrangles.

▪ LED color maintenance < 0.002 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation.

▪ Provides 6,000, 14,000, or 20,000 nominal lumens using 42, 100, or 150 nominal watts.

▪ Universal 120-277 AC voltage (50-60Hz) is standard.

▪ 0-10vdc dimming drivers are standard.

▪ Power factor > 0.90.

• • ▪ Total harmonic distortion < 20%.
  • ▪ Color rendering index > 80.
  • ▪ Polycarbonate housing and frosted lenses are standard.
  • ▪ Easy installation in new construction or retrofit.
  • ▪ cETLus listed for damp locations in ambient temperatures from - 20°C to 50°C (-4°F to 122°F).
  • ▪ VT-6L = DLC standard.
  • ▪ VT-14L & VT-20L = DLC premium.
  • ▪ IP67 rated for ingress protection.
  • ▪ IK10 rated for impact.
  • ▪ ETL sanitation listed for non-splash food zone to comply with NSF/ANSI 2 standard.
  • ▪ NEMA 4X.
  • ▪ Complies with FCC Part 15, class A.
  • ▪ Complies with IEC/EN61000-4-5, input transient protection (1.0kV).
  • ▪ Surge protection = 1.0kV
  • ▪ 5-year warranty of all electronics and housing.

Specification Sheet Click Here
