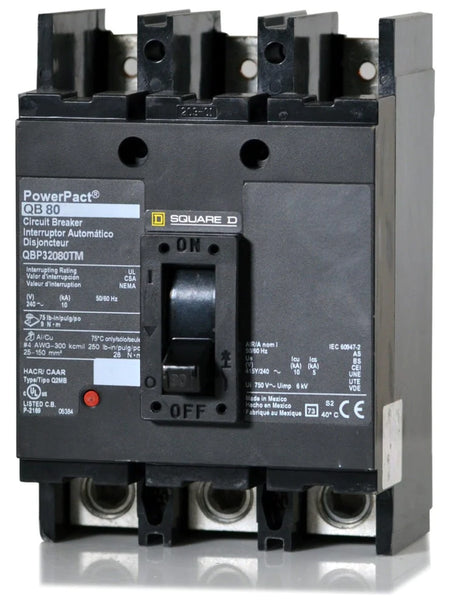

Square D QBP32080TM 3 Pole Circuit Breaker

$844.36

Availability : In Stock

Product Type :

Vendor : Exit Sign Warehouse

SKU : QBP32080TM

Square D QBP32080TM 3 Pole Circuit Breaker The Square D QBP32080TM is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 80 Amps and a voltage rating of 240VAC. It has an interrupting rating of 10kAIC at 240V. The QBP32080TM has a unit mounting type...

Product Details

Square D QBP32080TM 3 Pole Circuit Breaker

The Square D QBP32080TM is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 80 Amps and a voltage rating of 240VAC. It has an interrupting rating of 10kAIC at 240V. The QBP32080TM has a unit mounting type and includes long time and instantaneous trip functions.

Specifications

Brand	Square D
Series	QBP
Amperage	80
Voltage	240VAC
Poles	3
Phase	3
Mounting Type	Unit
Approval	UL, CSA, IEC, NEMA, NOM
Interrupting Rating	10kAIC at 240V
Frame Type	QBP
Connection Type	Bolt-On
Protection	Thermal Magnetic
Functions	Long Time and Instantaneous Trip
Terminal Connection	Load side lug
For Use With	225A MPL Lever Bypass Meter-Pak Metering Equipment
Standards	RoHS, REACh, HACR
Temperature Rating	40 to 70 °C
Actuator Type	Operating Handle
Mpn	QBP32080TM
Gtin	785901431299
